Gigabyte

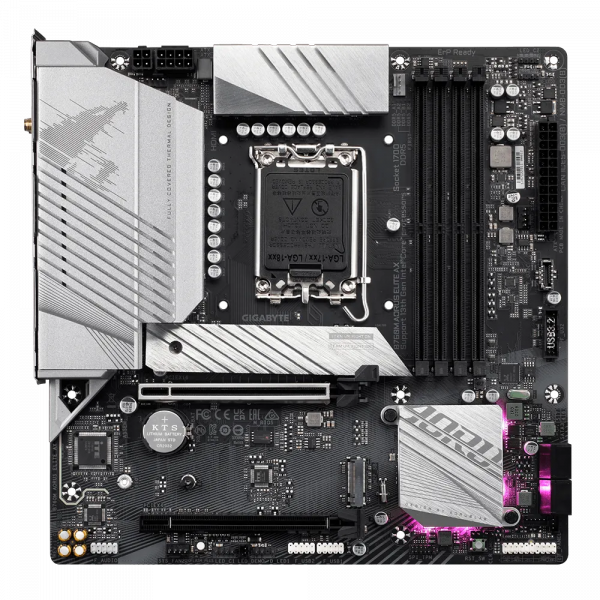

Gigabyte B760M AORUS Elite DDR4

m-ATX

LGA1700

B760

4

Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.

128GB

2

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

4

2

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Realtek® Audio CODEC

2/4/5.1/7.1-channel

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

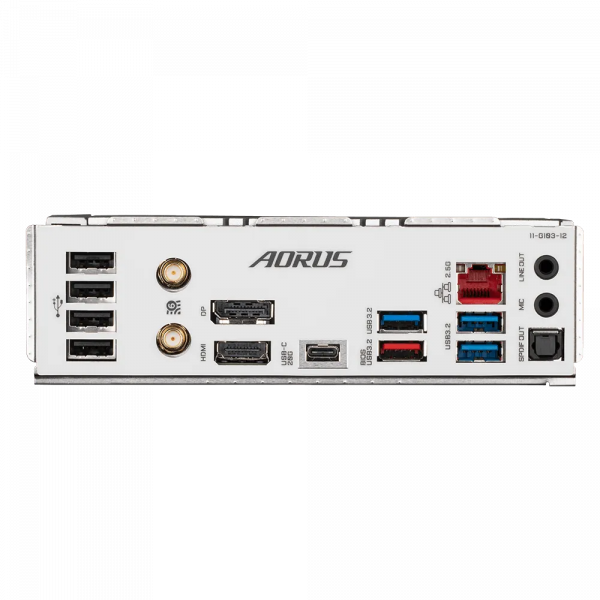

1 x HDMI port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

1 x USB 3.2 Gen 1 port on the back panel

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel

24.4cm x 24.4cm
