BIOSTAR

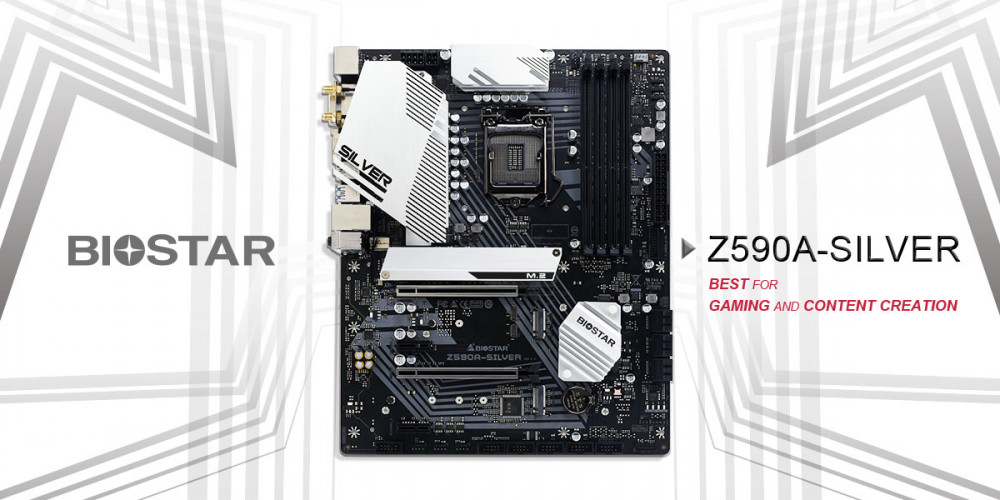

BIOSTAR Z590A Silver

ATX

LGA1200

Z590

4

5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133

128GB

2

6

3

Realtek RTL8125B

2 x WIFI Antenna Ports

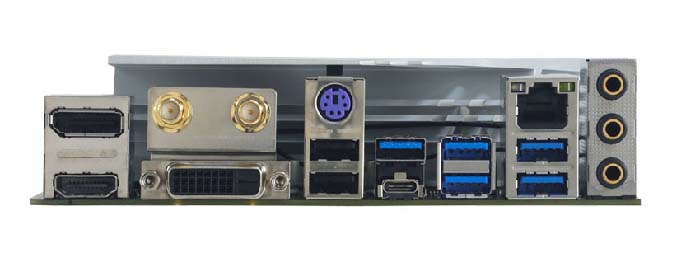

1 x PS/2 Keyboard/ Mouse Port

1 x HDMI Port (HDMI2.0)

1 x DP Port

1 x DVI-D Port

1 x USB 3.2 (Gen2x2) Type-C Port

2 x USB 3.2 (Gen2) Ports

3 x USB 3.2 (Gen1) ports

2 x USB 2.0 ports

1 x 2.5 GbE LAN port

3 x Audio Jack

6 x SATA III Connectors (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 4-Pin Power Connector

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x CPU water cooling connector (CPU_OPT)

3 x System Fan Connectors

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

1 x Thunderbolt 3 Header

2 x LED Headers (5V)

1 x LED Header (12V)

* M.2 (E key) Wi-Fi card is not provided
