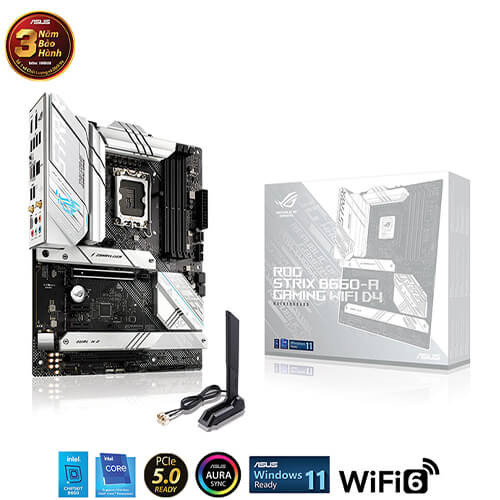

Bo Mạch Chủ Asus ROG STRIX B660-A GAMING WIFI DDR4
Chipset: Intel B660
Socket: Intel LGA 1700
Số khe RAM: 4 (DDR4)
Kích thước: ATX
Tích hợp sẵn Wifi & Bluethooth
Chipset: Intel B660
Socket: Intel LGA 1700
Số khe RAM: 4 (DDR4)
Kích thước: ATX
Tích hợp sẵn Wifi & Bluethooth
Thương Hiệu | Asus |
Model | ROG STRIX B660-A GAMING WIFI D4 |
Kích Cỡ | ATX Form Factor |
CPU Socket | LGA1700 |
Chipset | B660 |
Số Khe Ram | 4 |
Bus Ram Hỗ Trợ | DDR4 5333(OC) /5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ |
Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |
Số Kênh Bộ Nhớ Hỗ Trợ | Dual Channel |
PCI Express 3.0 x16 | 1 x PCIe 5.0/4.0/3.0 x16 slot(s) 1 x PCIe 3.0 x16 slot (supports x4 mode) |
PCI Express x1 | 2 x PCIe 3.0 x1 slots |
Số Cổng SATA | 4 x SATA 6Gb/s ports |
M.2 | 3 x M.2 slot |
SATA RAID | 0/1/5/10 |
Chip Xử Lý Âm Thanh | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
Số Kênh Âm Thanh | 7.1 |
LAN Chipset | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
Tốc Độ LAN | 2.5Gb |
Cổng I/O Phía Sau | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
Onboard USB | 1 x USB 3.2 Gen 2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports |
Cổng Kết Nối Khác | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
Đèn LED Đi Kèm | 3 x Addressable Gen 2 headers 1 x AURA RGB header |
Kích Thước (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Chân Cắm Nguồn | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
