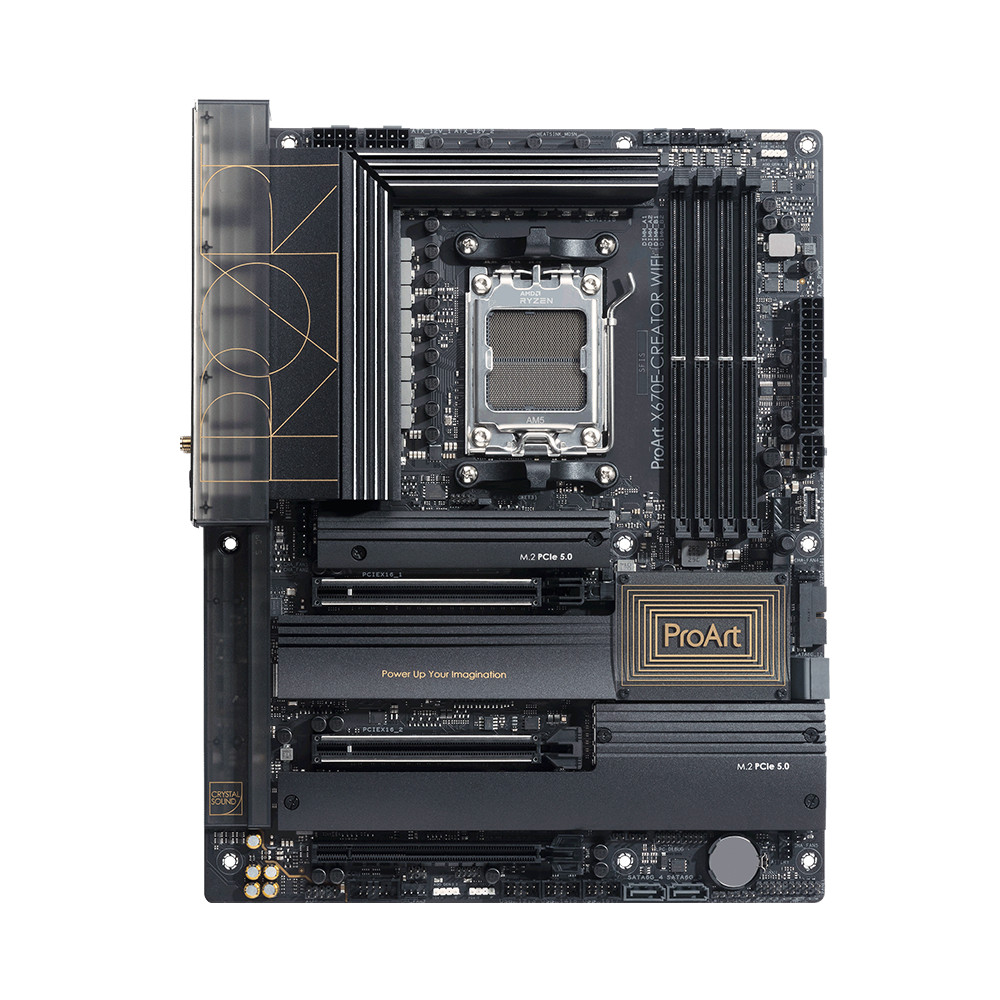

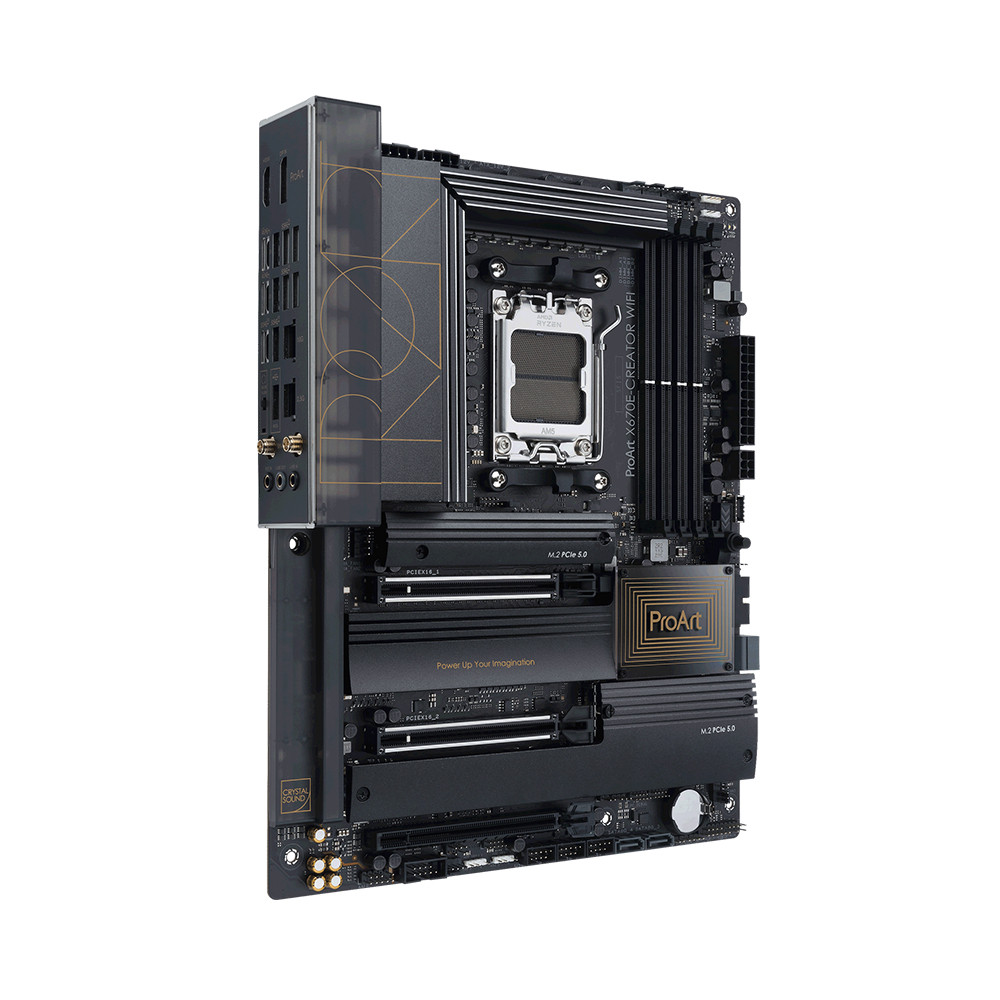

Bo Mạch Chủ ASUS PROART X670E-CREATOR WIFI

ASUS

ASUS PROART X670E-CREATOR WIFI

ATX

AM5

X670

4

DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory

128GB

AMD Ryzen™ 7000 Series Desktop Processors

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x2 mode)

4 x SATA 6Gb/s ports

Total supports 4 x M.2 slots

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Power pre-regulator reduces power input noise to ensure consistent performance

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

1 x Marvell® AQtion 10Gb Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries.

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.2

2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI® port

1 x Wi-Fi Module

1 x Marvell® AQtion 10Gb Ethernet

1 x Intel® 2.5Gb Ethernet

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Rear USB (Total 11 ports)

2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

1 x 6-pin PCIe Power connector
