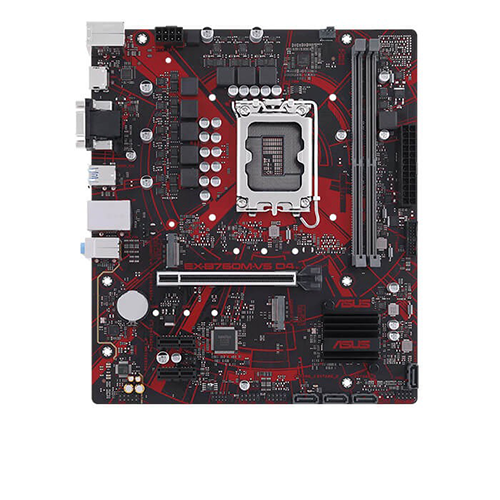

Asus

 EX B760M V5 DDR4

M-ATX

LGA 1700

B760

2

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)

3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

64GB

Dual

1 x PCIe 4.0 x16 slot

2 x PCIe 4.0 x1 slots

4 x SATA 6Gb/s ports

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

 Realtek 7.1 Surround Sound High Definition Audio CODEC

Ethernet Realtek 2.5Gb

1 x LAN 2.5Gb/s

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x VGA port

1 x HDMI® port

3 x Audio jacks

1 x Realtek 2.5Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header

9.6 inch x 8.3 inch(24.4cm x 21.1cm)

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector
