Asus

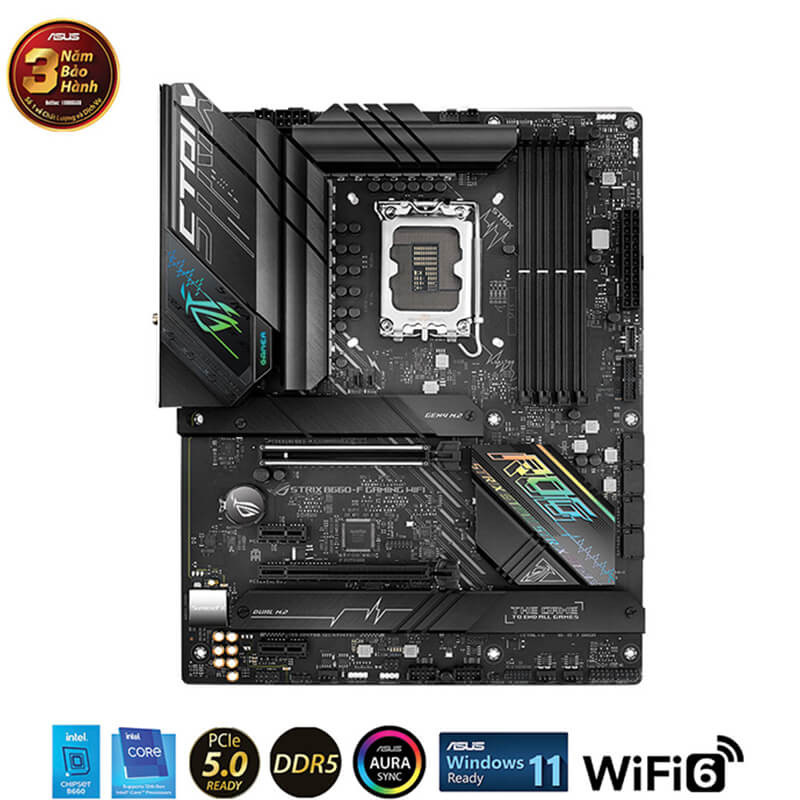

ROG STRIX B660-F GAMING WIFI

ATX Form Factor

LGA1700

B660

4

4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800

128GB

Dual Channel

1 x PCIe 5.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

4 x SATA 6Gb/s ports

3 x M.2 slot

0/1/5/10

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

7.1

1 x Intel® 2.5Gb Ethernet

2.5Gb

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 ports (1 x Type-A)

5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™ button

1 x Clear CMOS button

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x S/PDIF Out header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

3 x Addressable Gen 2 headers

1 x AURA RGB header

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector
