Gigabyte

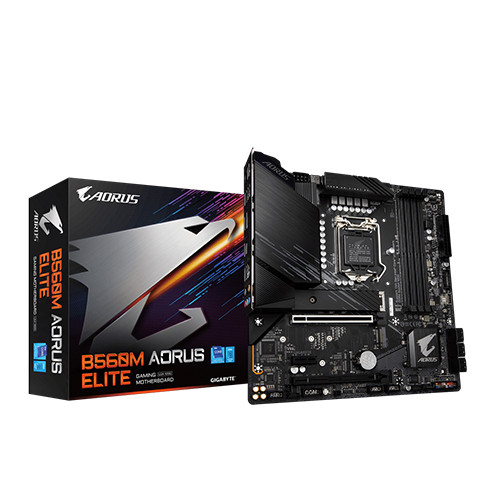

B560M AORUS ELITE (rev. 1.0)

Micro ATX Form Factor

LGA1200

B560

4

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

128GB

Dual Channel

2 x PCI Express x16 slot

1 x PCI Express x1 slot

6 x SATA 6Gb/s connectors

2 x M.2 connector

Ready

Realtek® Audio codec

2/4/5.1/7.1-channel

Realtek®2.5GbE LAN chip

2.5 Gbit/1 Gbit/100 Mbit

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen2 support

1 x USB 3.2 Gen2 Type-A port (red)

2 x USB 3.2 Gen1 ports

6 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

6 x audio jacks

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x front panel header

1 x front panel audio header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

2 x addressable LED strip headers

2 x RGB LED strip headers

24.4cm x 24.4cm

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector
