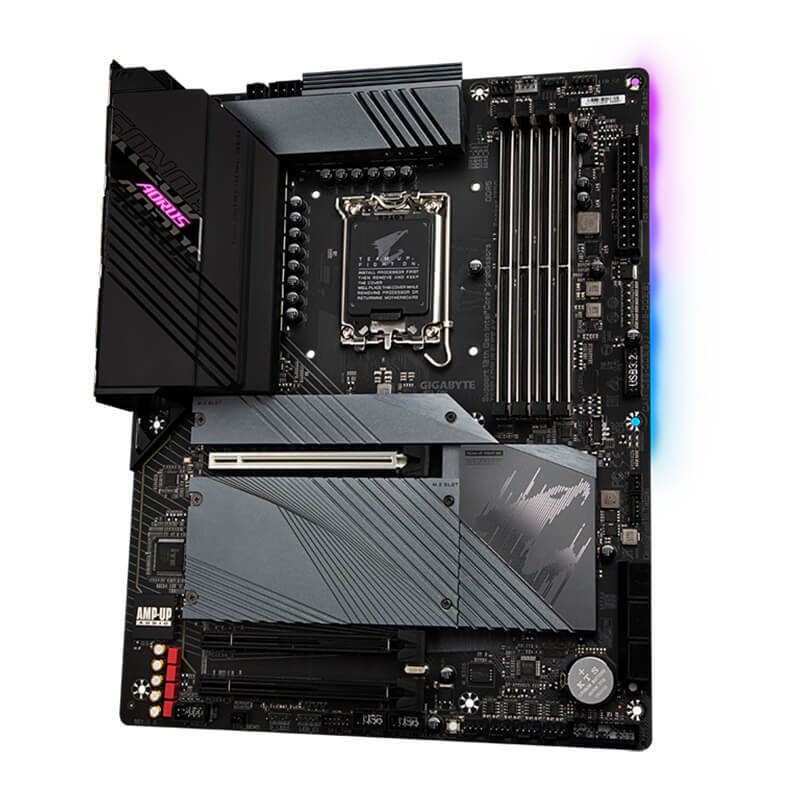

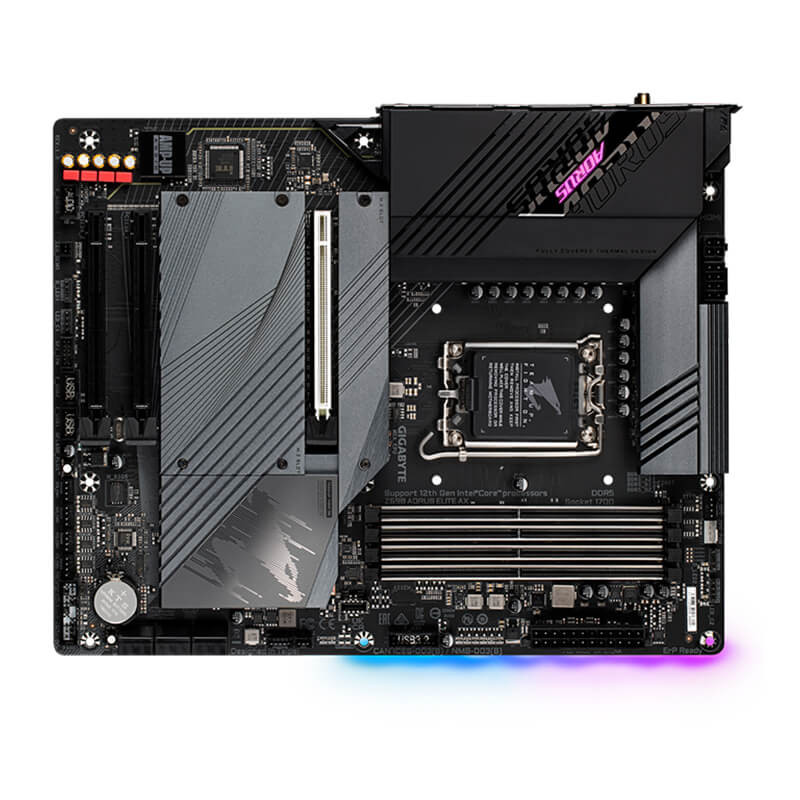

GIGABYTE

Z690 AORUS ELITE DDR5

ATX Form Factor

LGA 1700

Z690

4

Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

128Gb

Dual Chanel

3 x PCI Express x16 slot

6 x SATA 6Gb/s connectors

4 x M.2 connector

Ready

Realtek® ALC1220-VB CODEC

2-channel analog output

Support for S/PDIF Out

7.1-channel digital signals

Realtek® 2.5GbE LAN chip

2.5 Gbps/1 Gbps/100 Mbps

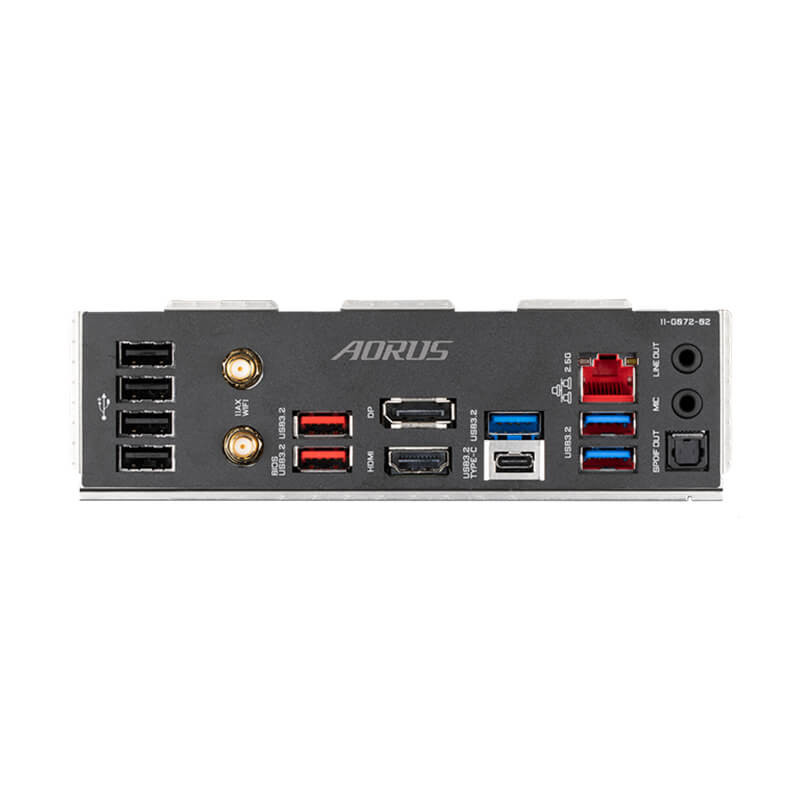

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

1 x front panel header

1 x front panel audio header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

2 x addressable LED strip headers

2 x RGB LED strip headers

30.5cm x 24.4cm

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector
