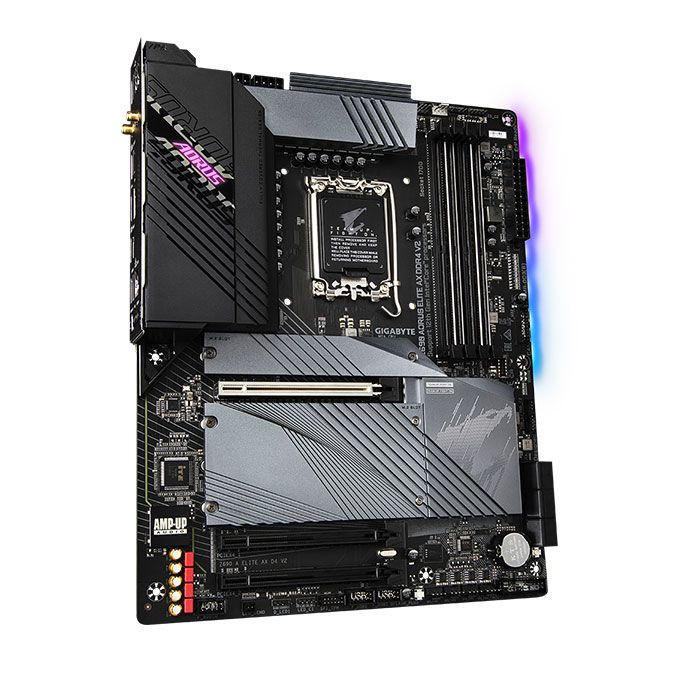

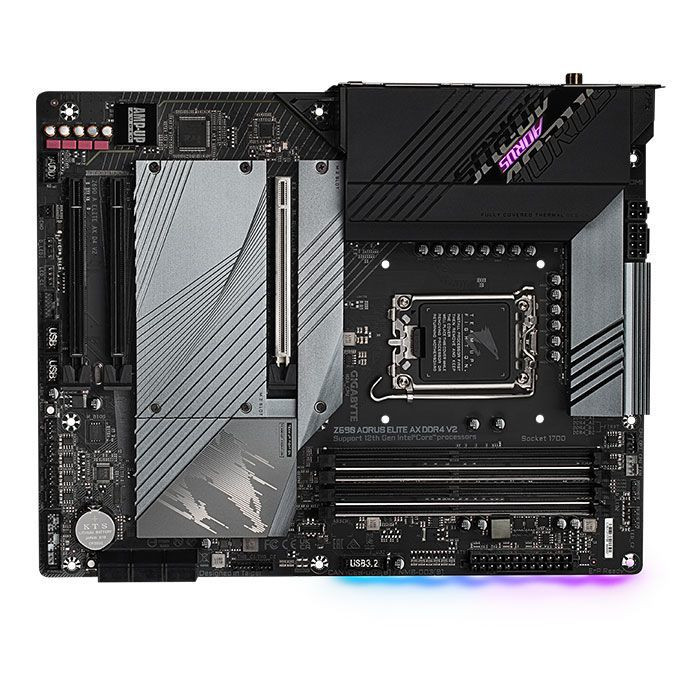

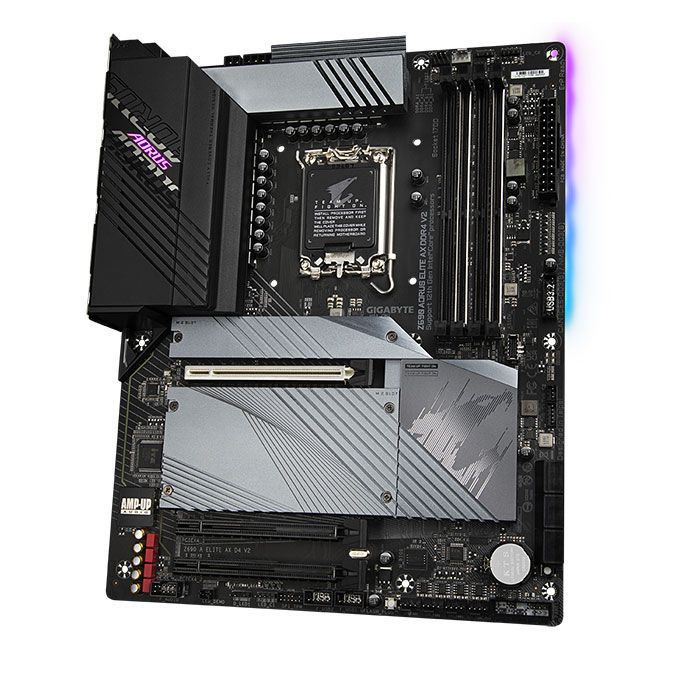

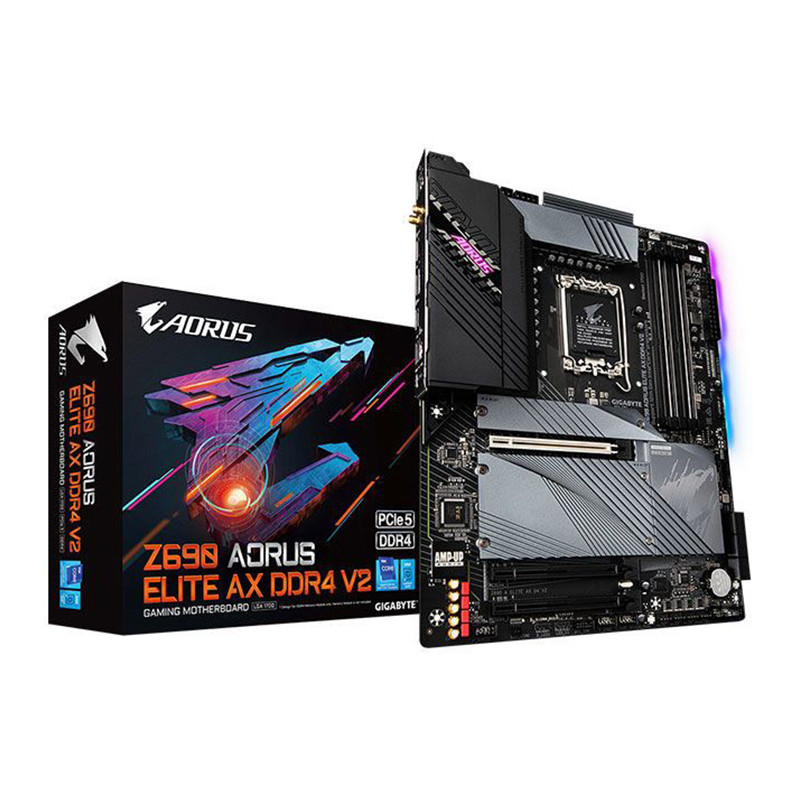

Bo Mạch Chủ GIGABYTE Z690 AORUS Elite AX DDR4 V2
- Socket: LGA 1700 hỗ trợ CPU intel thế hệ 12
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 128GB)
- Khe cắm mở rộng: PCI Express x16 slot
- Khe cắm ổ cứng: M.2 connector, 6 x SATA 6Gb/s
- Socket: LGA 1700 hỗ trợ CPU intel thế hệ 12
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 128GB)
- Khe cắm mở rộng: PCI Express x16 slot
- Khe cắm ổ cứng: M.2 connector, 6 x SATA 6Gb/s
Thương Hiệu | GIGABYTE |
Model | Z690 AORUS Elite AX DDR4 V2 |
Kích Cỡ | ATX |
CPU Socket | LGA1700 |
Chipset | Intel® Z690 Express Chipset |
Số Khe Ram | 4 |
Bus Ram Hỗ Trợ | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |
Số Cổng SATA | 6 |
M.2 | 4 |
Chip Xử Lý Âm Thanh | Realtek® ALC1220-VB CODEC |
Số Kênh Âm Thanh | 2-channel analog output 7.1-channel digital signals |
LAN Chipset | Realtek® 2.5GbE LAN chip |
Tốc Độ LAN | 2.5 Gbps/1 Gbps/100 Mbps |

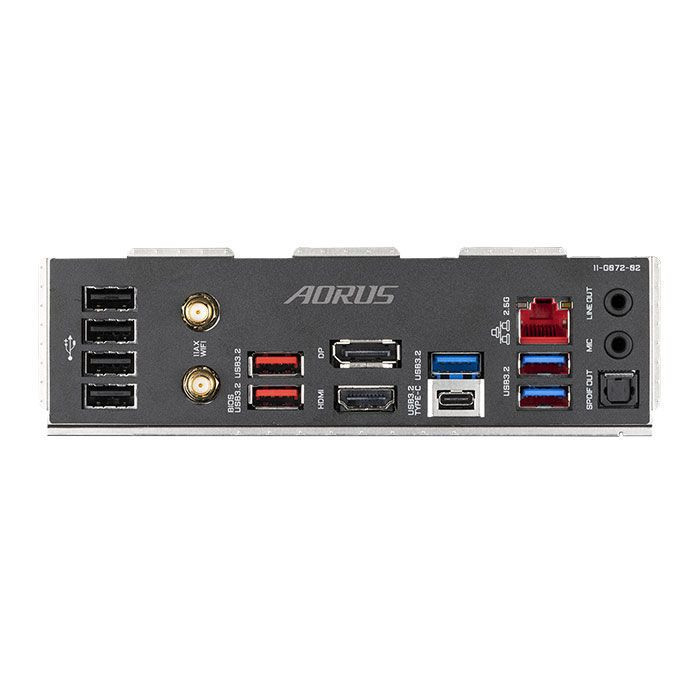

Cổng I/O Phía Sau | 4 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 3 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x audio jacks 1 x HDMI port 1 x DisplayPort |
Onboard USB | 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
Cổng Kết Nối Khác | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
Kích Thước (W x L) | 30.5cm x 24.4cm |
Chân Cắm Nguồn | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
