GIGABYTE

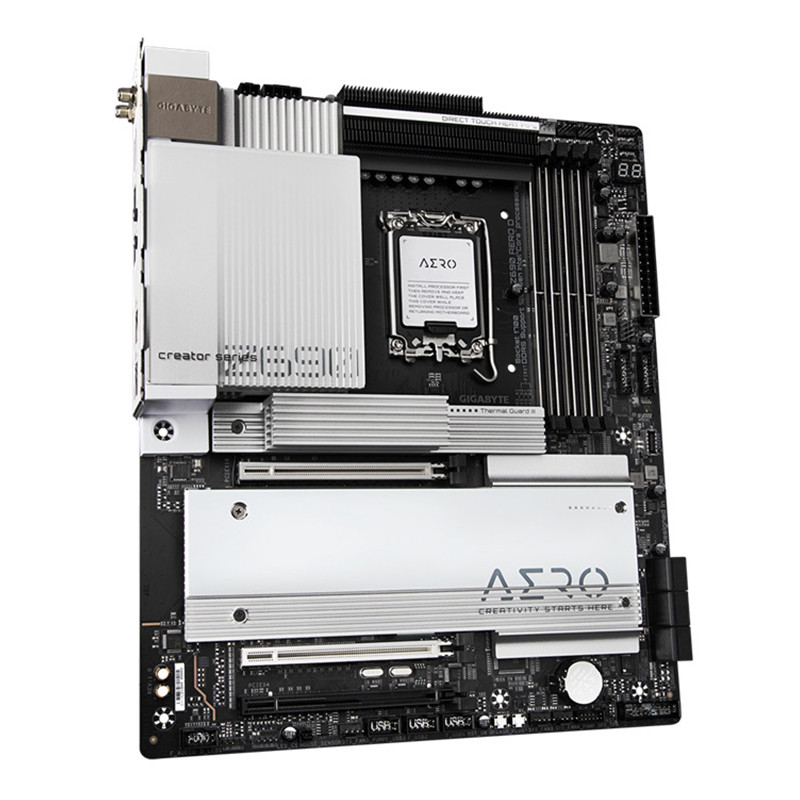

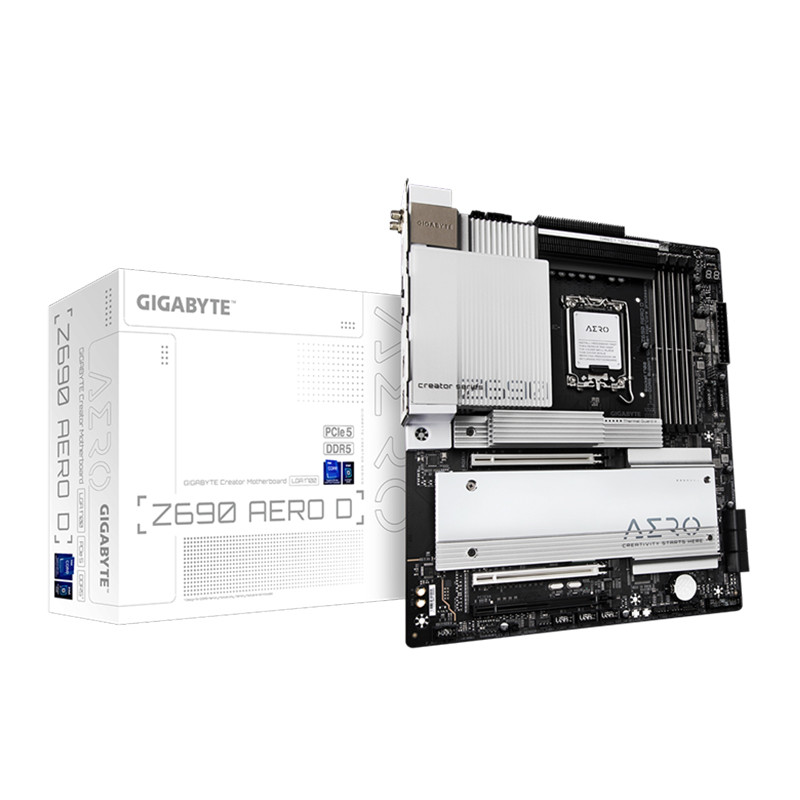

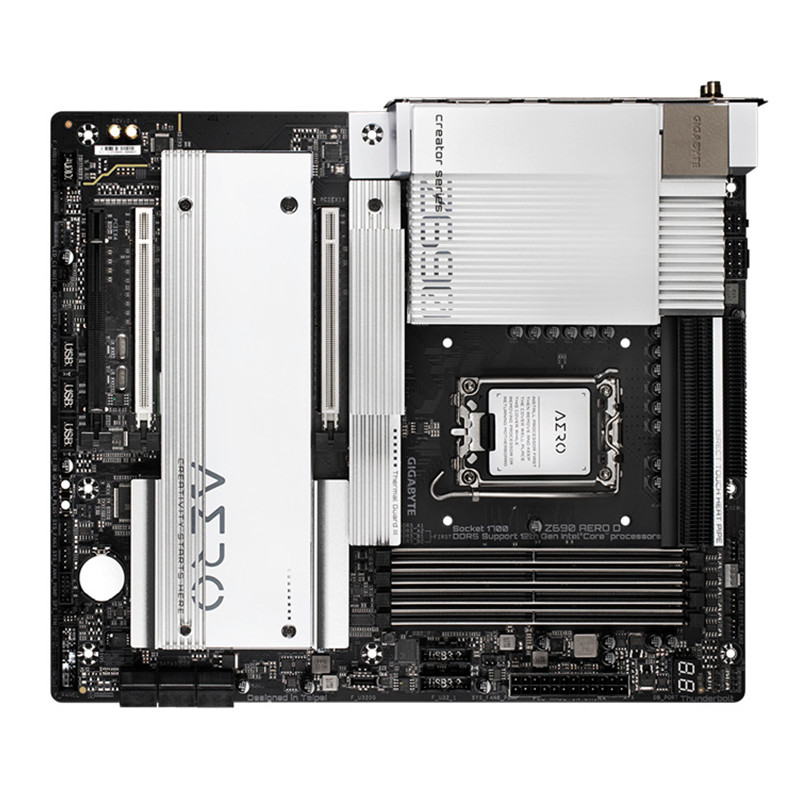

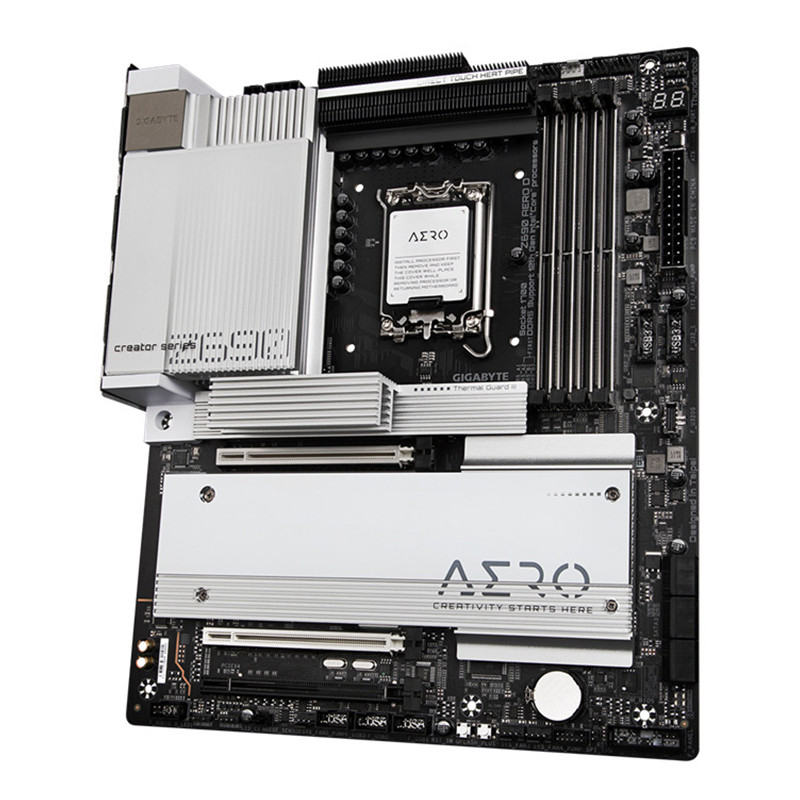

GIGABYTE Z690 AERO D DDR5

E-ATX

LGA1700

Intel® Z690 Express Chipset

4

Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

128GB

1 x PCI Express x16 slot, running at x4 (PCIEX4)

(The PCIEX4 slot conforms to PCI Express 3.0 standard.)

6

4

Realtek® ALC4080 codec (rear panel audio)

Realtek® ALC897 codec (front panel audio)

2-channel

Marvell® AQtion AQC113C 10GbE LAN chip (LAN2)

Intel® 2.5GbE LAN chip (LAN1)

2.5 Gbps/1 Gbps/100 Mbps (LAN1)

10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps (LAN2)

2 x SMA antenna connectors (2T2R)

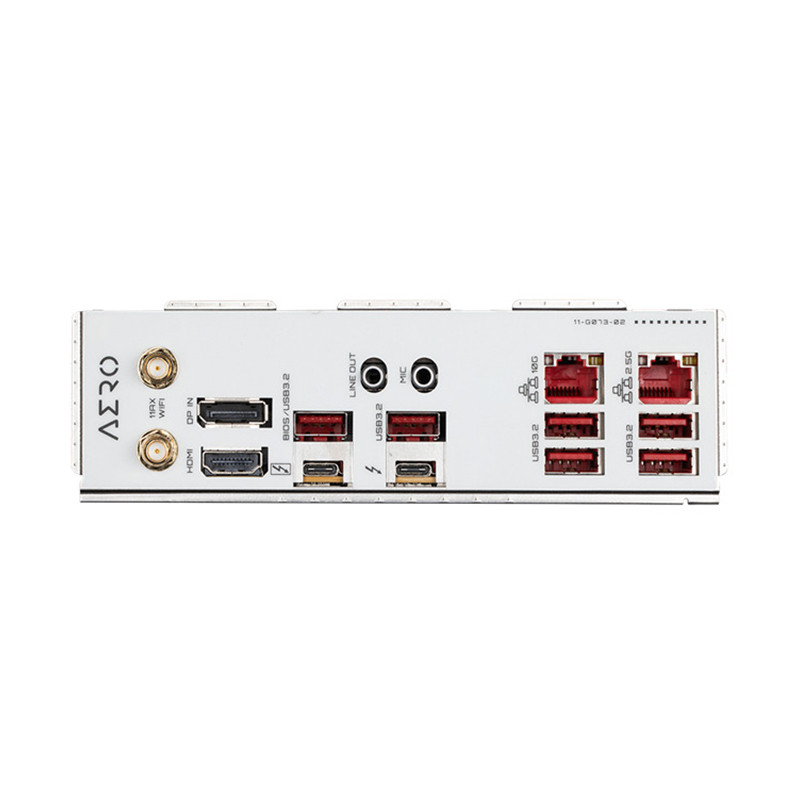

1 x DisplayPort In port

1 x HDMI port

2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)

6 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 ports

2 x audio jacks

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

3 x USB 2.0/1.1 headers

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

3 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

30.5cm x 25.9cm

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector
