GIGABYTE

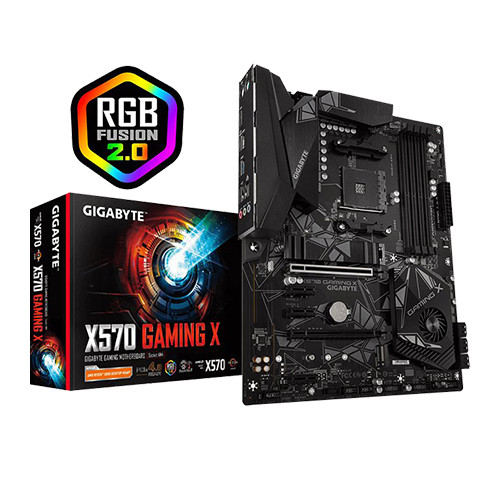

X570 GAMING X (rev. 1.0)

ATX

AMD Socket AM4

AMD X570

4

AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :

Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

128 GB

Dual channel

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)

3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0

6 x SATA 6Gb/s connectors

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

N/A

RAID 0, RAID 1, and RAID 10

Realtek® ALC887 codec

2/4/5.1-channel

Realtek® GbE LAN chip (10/100/1000 Mbit)

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x Q-Flash Plus button

N/A

30.5cm x 24.4cm

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector
