Bo Mạch Chủ Gigabyte X570 Aorus Pro Wifi

MSP:
Đánh giá:
Lượt xem: 3465
Build PC với sản phẩm này
  • -Kích thước: ATX

    -Socket: AM4

    -Chip set:  X570

    -Khe Ram tối đa: 4

    -Bus Ram hỗ trợ:  2133Mhz - 4400 Mhz ( Gen 3 )

Xem thêm
7.490.000đ
Bảo hành 36 Tháng
Hỗ trợ trả góp 0%, trả trước 0 đ
Hoàn tiền 200% nếu có hàng giả
Giao hàng nhanh trên toàn quốc
Hỗ trợ kĩ thuật online 24/7
Vệ sinh miễn phí PC, Laptop trọn đời

Mô tả sản phẩm

Bo Mạch Chủ Gigabyte X570 Aorus Pro Wifi  là dòng main cao cấp hỗ trợ CPU 5000 Series của AMD, với chiếc main đến từ GIgabyte này bạn cũng có thể sử dụng các CPU 2000,3000 Series trước đó. Sản phẩm đang được bán tại TNC Store


Xem thêm

Đánh giá của khách hàng

5
5
0%
4
0%
3
0%
2
0%
1
0%
Xem thêm

Đánh giá sản phẩm

Chia sẻ đánh giá *
Họ và tên *
Nhập số điện thoại *
Gửi đánh giá

Thông số kỹ thuật

Thương Hiệu

GIGABYTE

ModelX570 AORUS PRO WIFI
Kích Cỡ

ATX

CPU Socket

AM4

Chipset

AMD X570

Số Khe Ram

4

Bus Ram Hỗ Trợ

DDR4 4000(O.C.)

Dung Lượng Ram Tối Đa Hỗ Trợ

128 GB

Số Kênh Bộ Nhớ Hỗ Trợ

Dual channel

PCI Express 3.0 x16

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

PCI Express x1

2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0

Số Cổng SATA

6 x SATA 6Gb/s connectors

M.2

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)

Intel Optane

N/A

SATA RAID

RAID 0, RAID 1, and RAID 10

Chip Xử Lý Âm Thanh

Realtek® ALC1220-VB codec

LAN Chipset

Intel® GbE LAN chip (10/100/1000 Mbit)

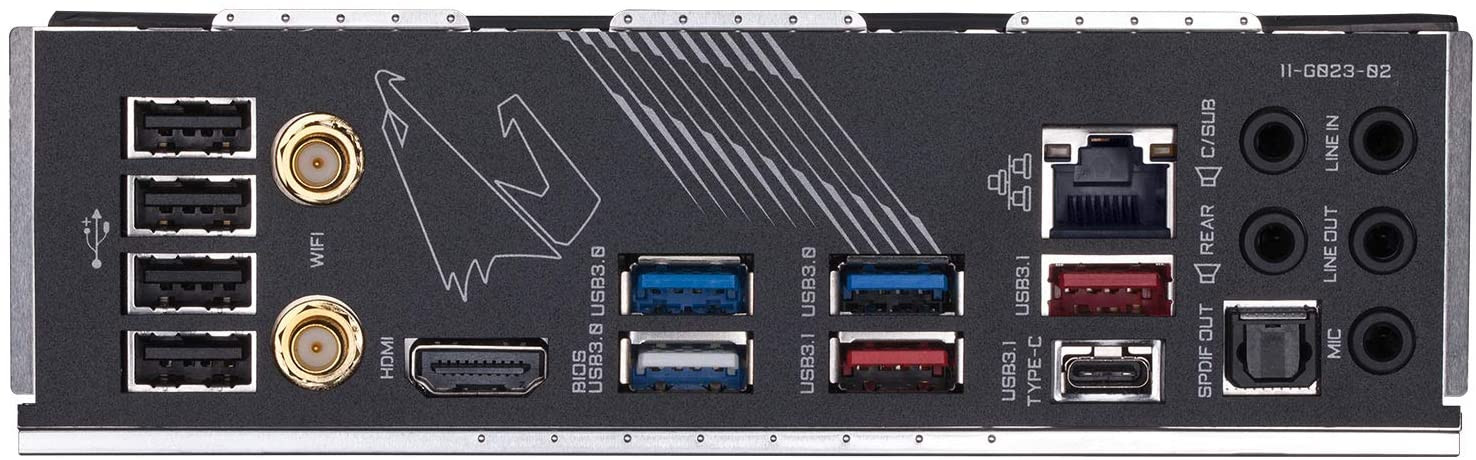

Cổng I/O Phía Sau

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)

* For 3rd Generation AMD Ryzen™ processors only.

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

Onboard USB

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x Q-Flash Plus button

Đèn LED Đi Kèm

N/A

Kích Thước (W x L)

30.5cm x 24.4cm

Chân Cắm Nguồn

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

Xem thêm
