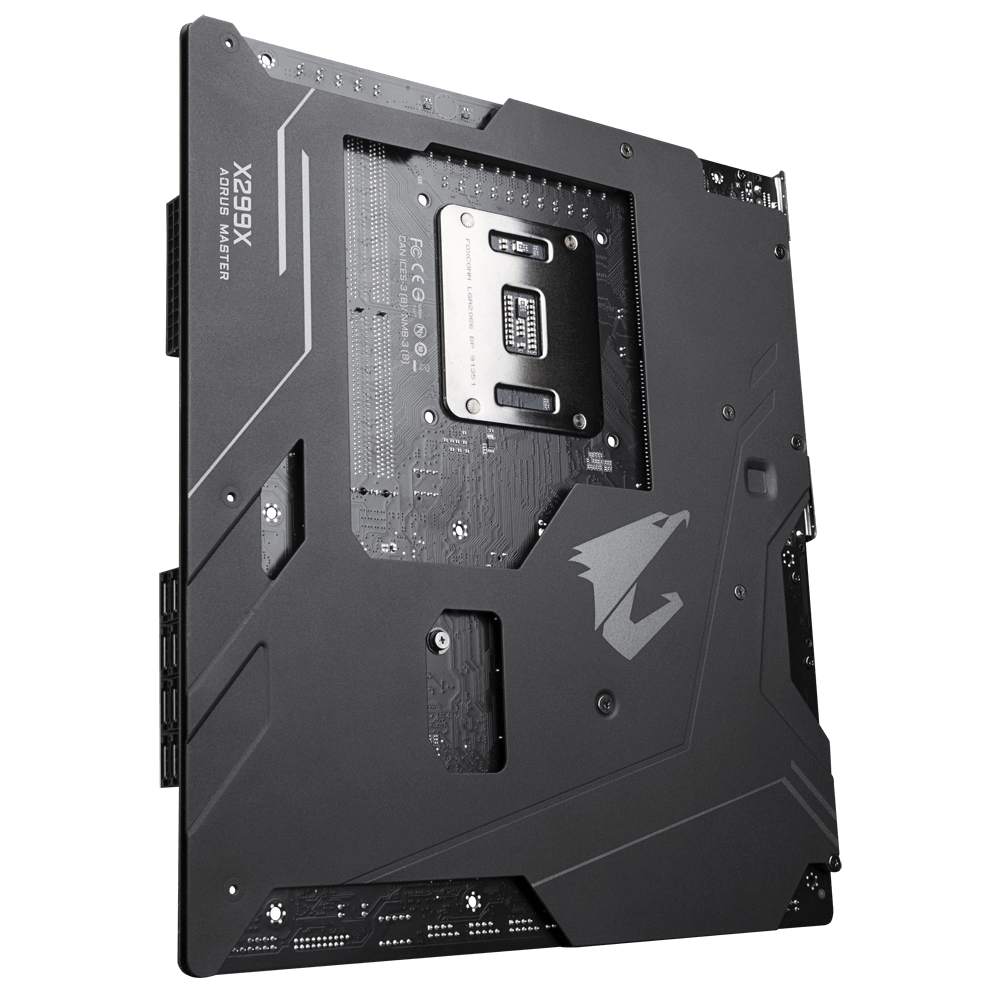

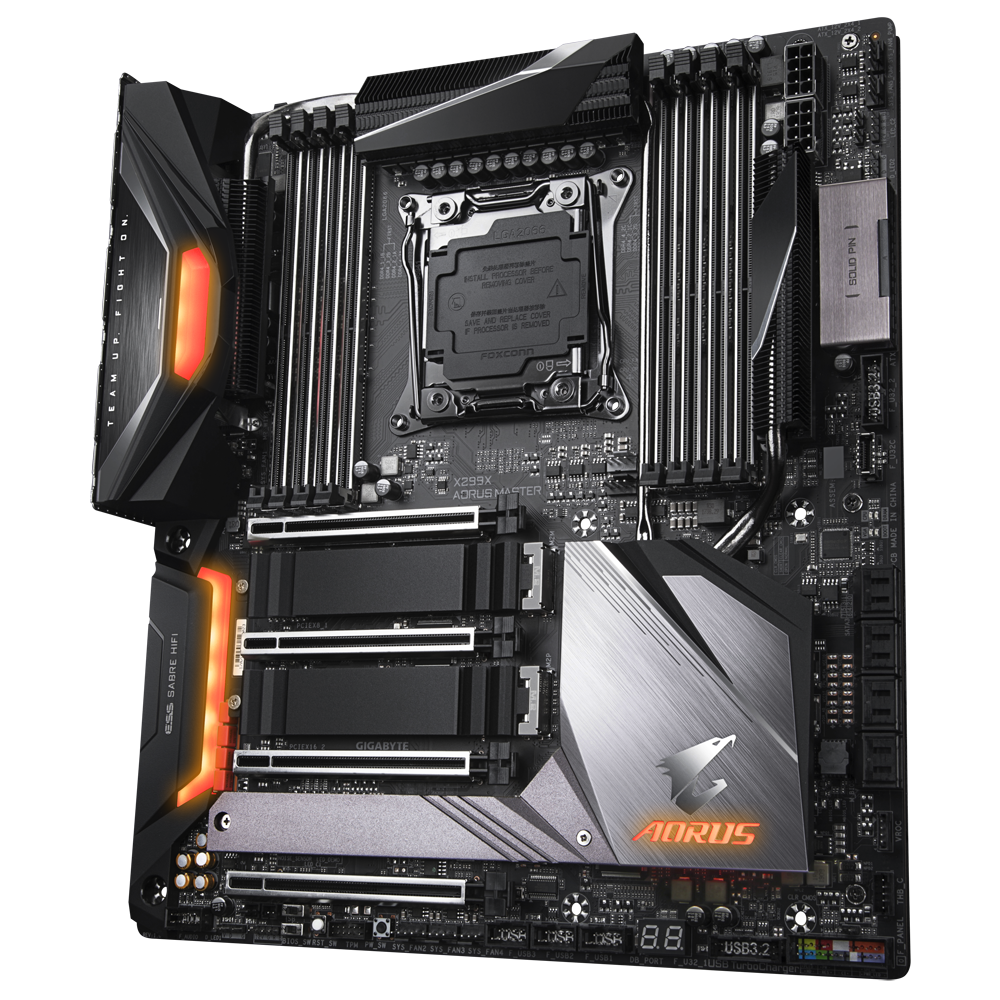

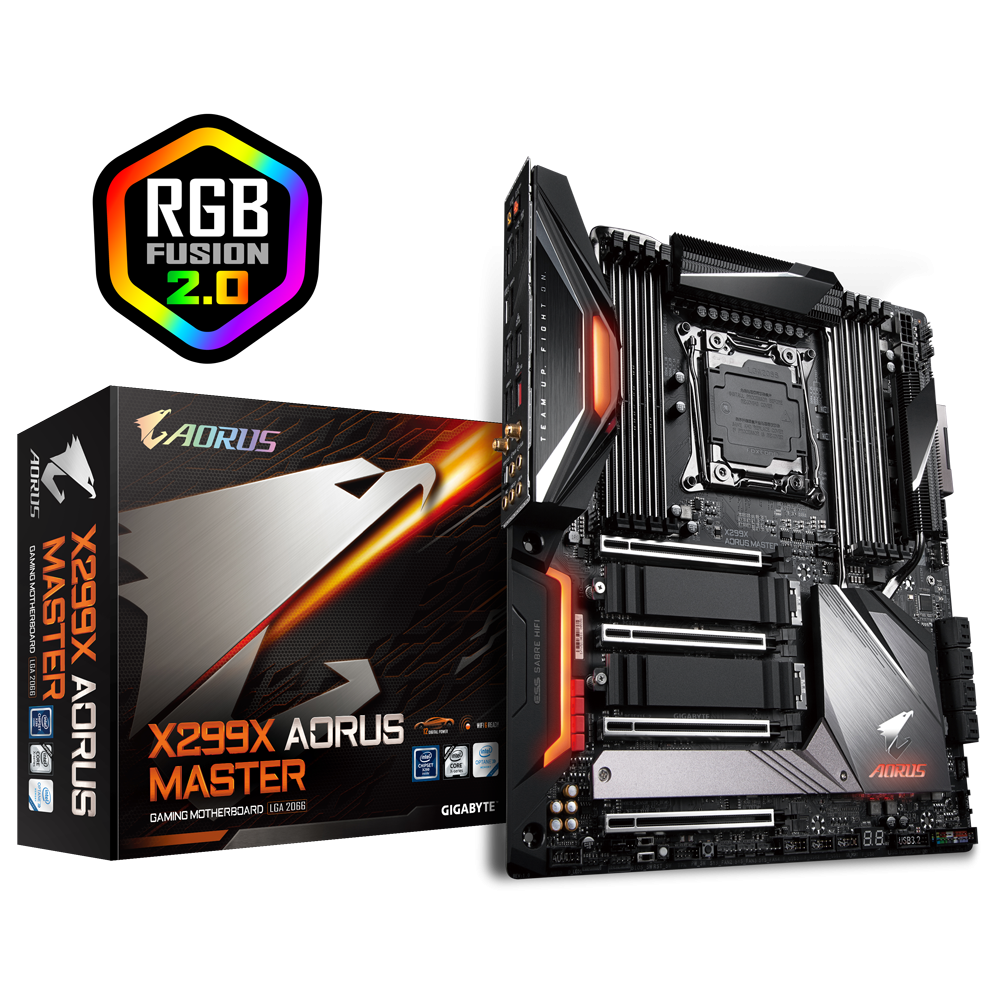

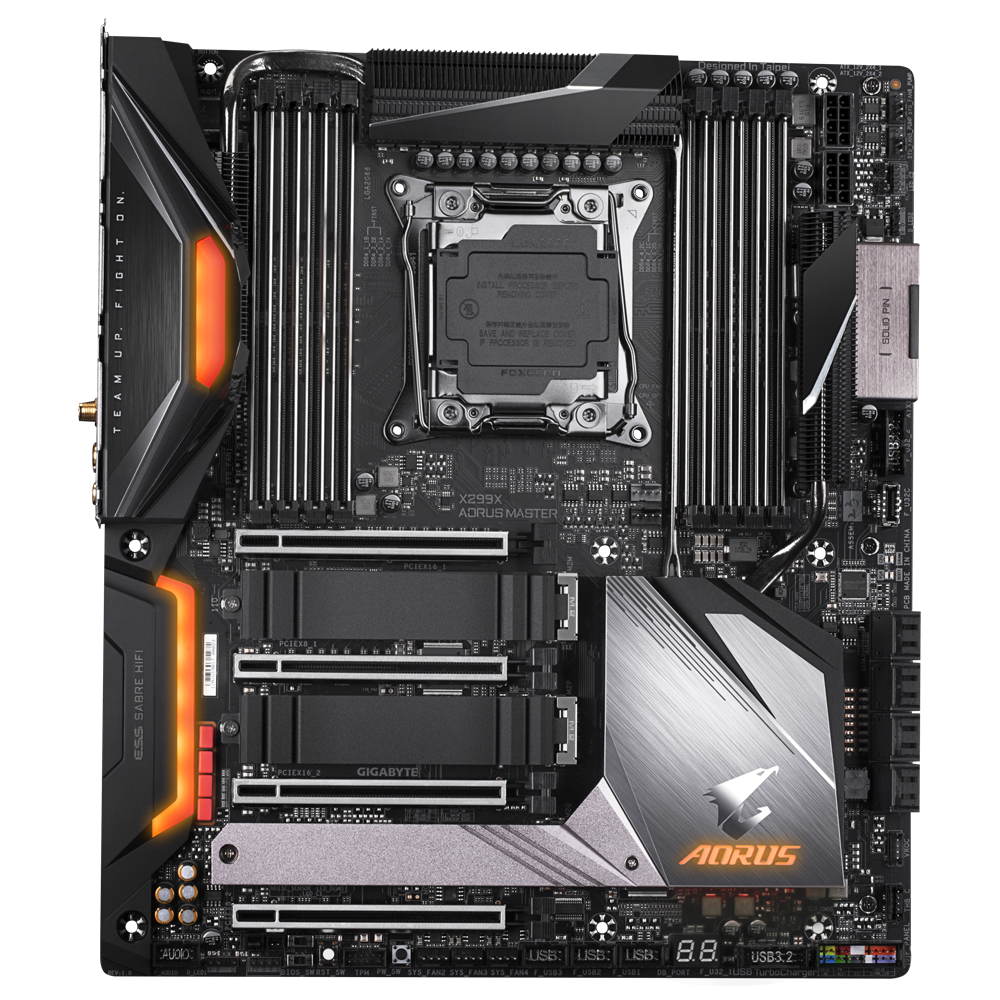

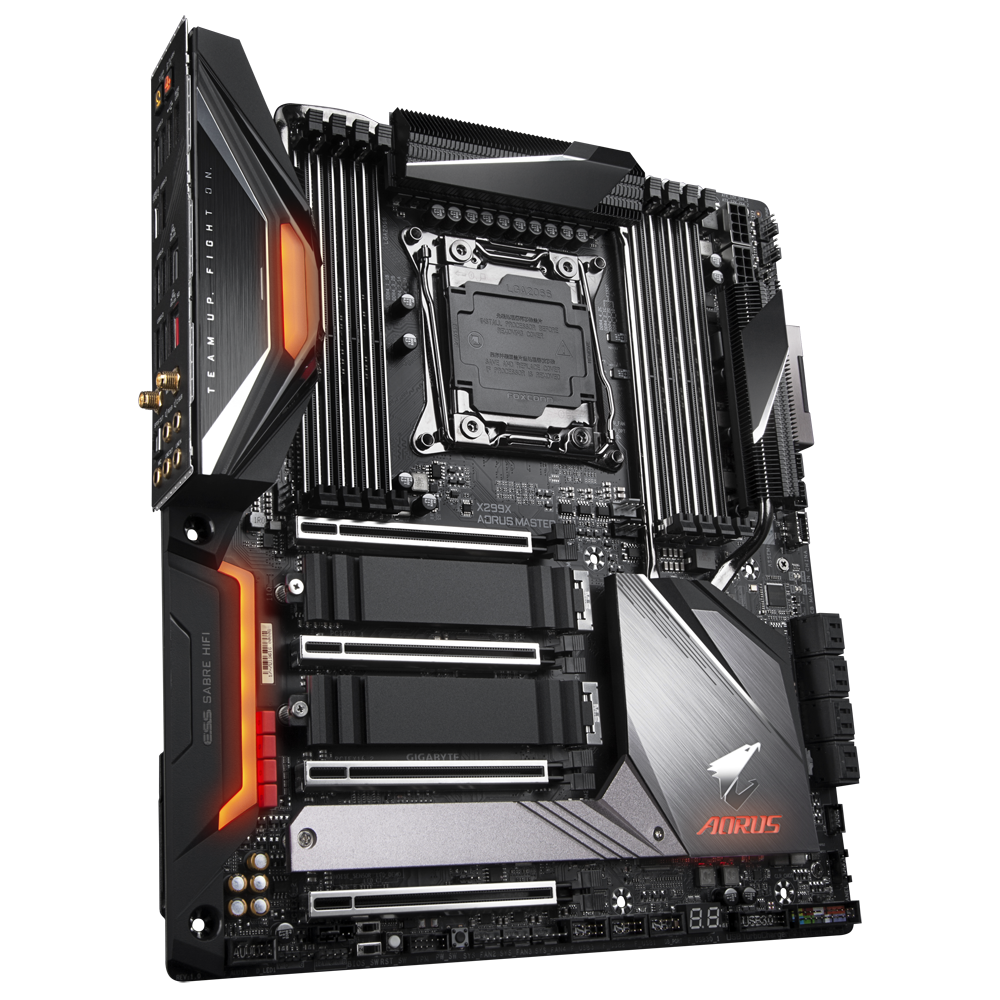

Bo Mạch Chủ Gigabyte X299X AORUS MASTER

GIGABYTE

E-ATX

Support for Intel® Core™ i7-7800X and above X series processors/Intel® Core™ i9 X series processors in the LGA2066 package

Intel®X299 Express Chipset

8 x DDR4 DIMM

Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules

256 GB (32 GB single DIMM capacity)

4 channel memory architecture

Support for non-ECC Un-buffered DIMM memory modules

Support for Extreme Memory Profile (XMP) memory modules

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

8 x SATA 6Gb/s connectors

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Realtek® ALC1220-VB codec

2/4/5.1/7.1-channel

1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)

1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)

1 x Q-Flash Plus button

1 x Clear CMOS button

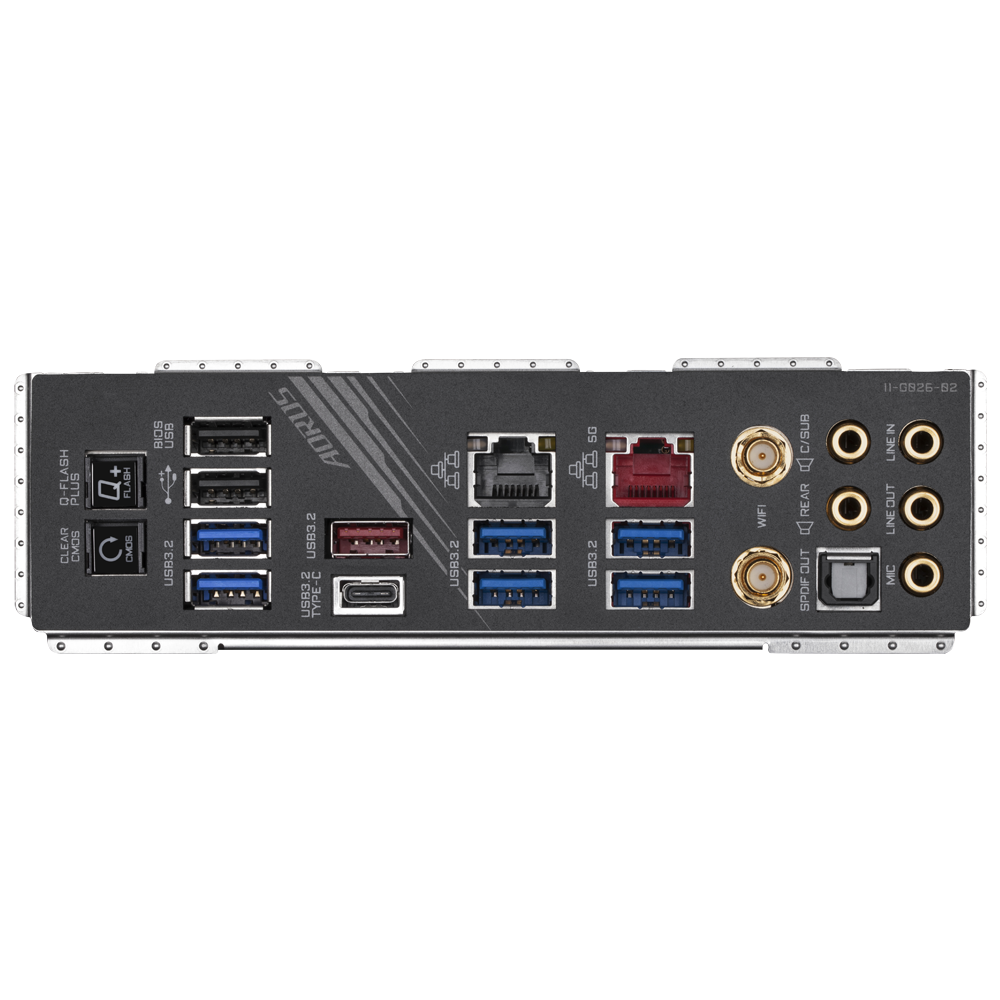

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

6 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

2 x RJ-45 ports

2 x SMA antenna connectors (2T2R)

1 x optical S/PDIF Out connector

5 x audio jacks

Chipset+2 ASMedia® USB 3.2 Gen 2 Controllers:

1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+Realtek® USB 3.2 Gen 1 Hub:

2 x USB 3.2 Gen 1 ports on the back panel

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset:

8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

2 x USB 2.0/1.1 ports available through the internal USB header

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x Intel® VROC Upgrade Key header

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

3 x USB 2.0/1.1 headers

1 x noise detection header

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x power button

1 x reset button

2 x temperature sensor headers

1 x Clear CMOS jumper

2 x BIOS switches

2 x addressable LED strip headers

2 x RGB LED strip headers

30.5cm x 26.9cm

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors
