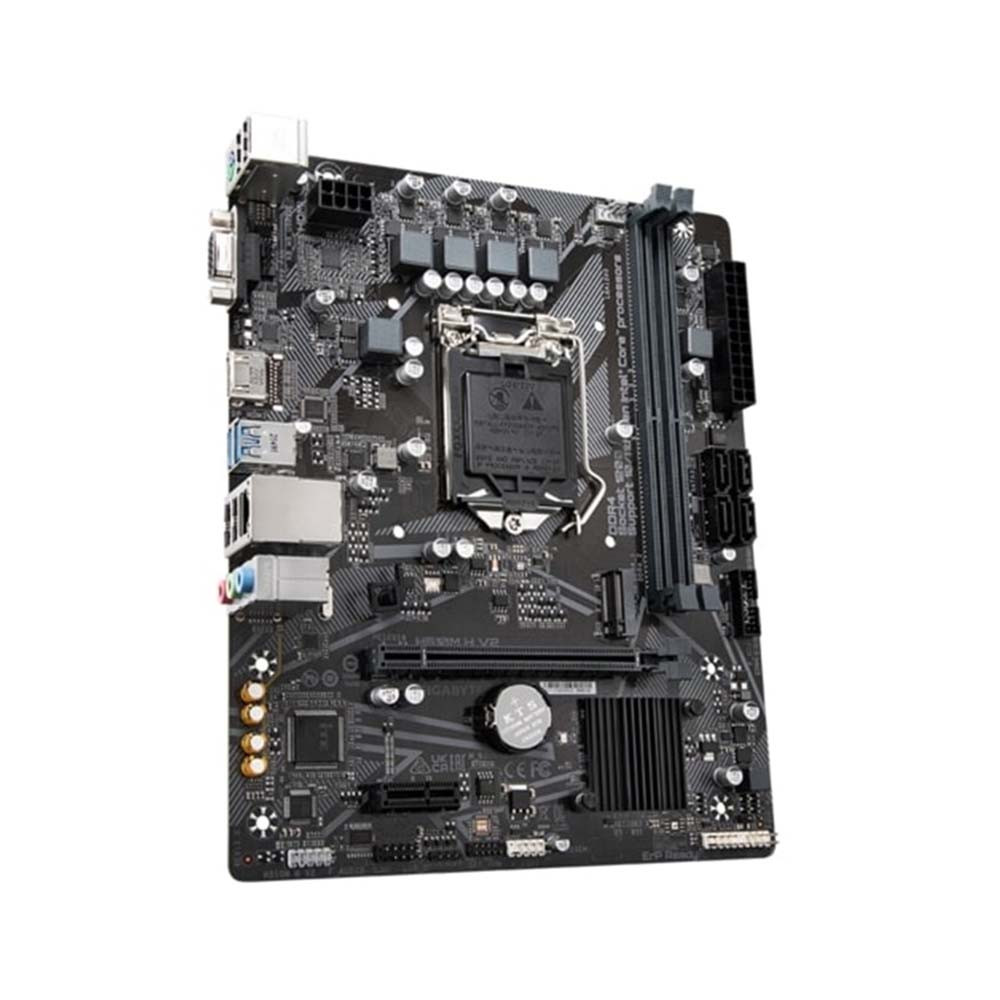

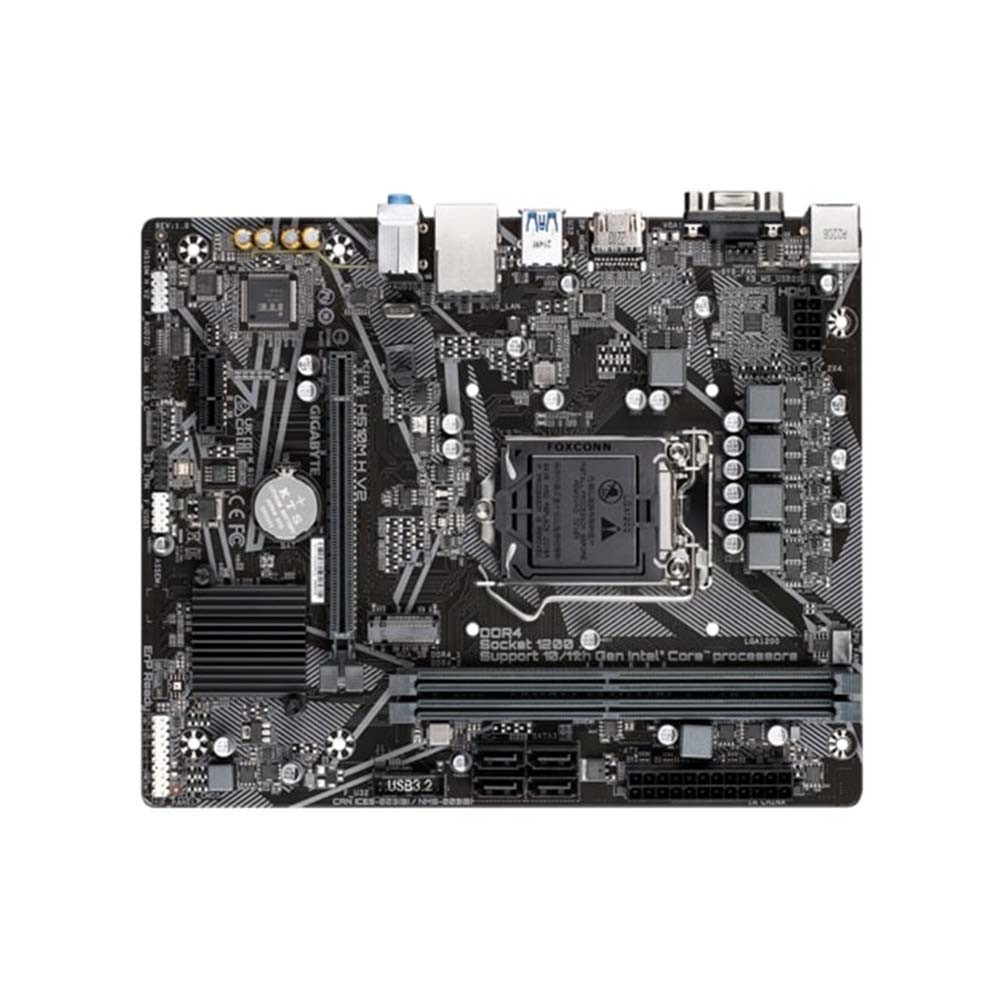

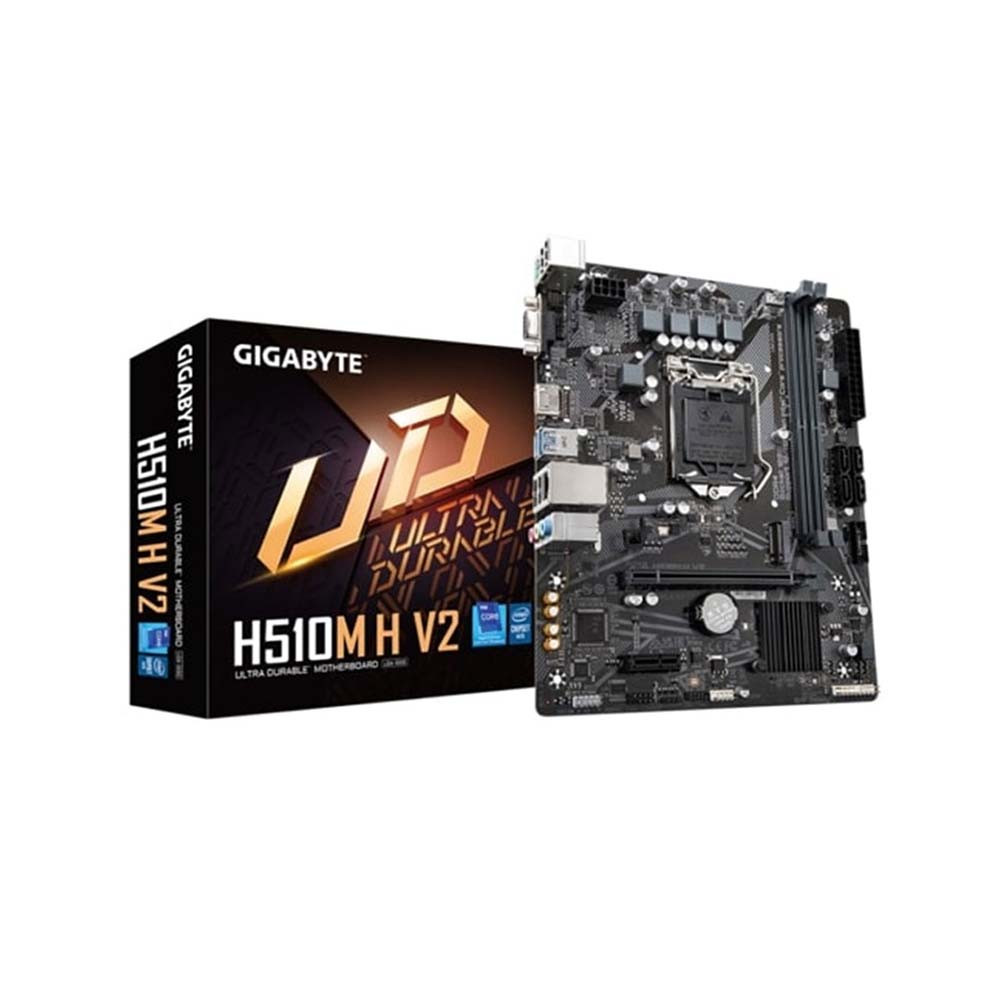

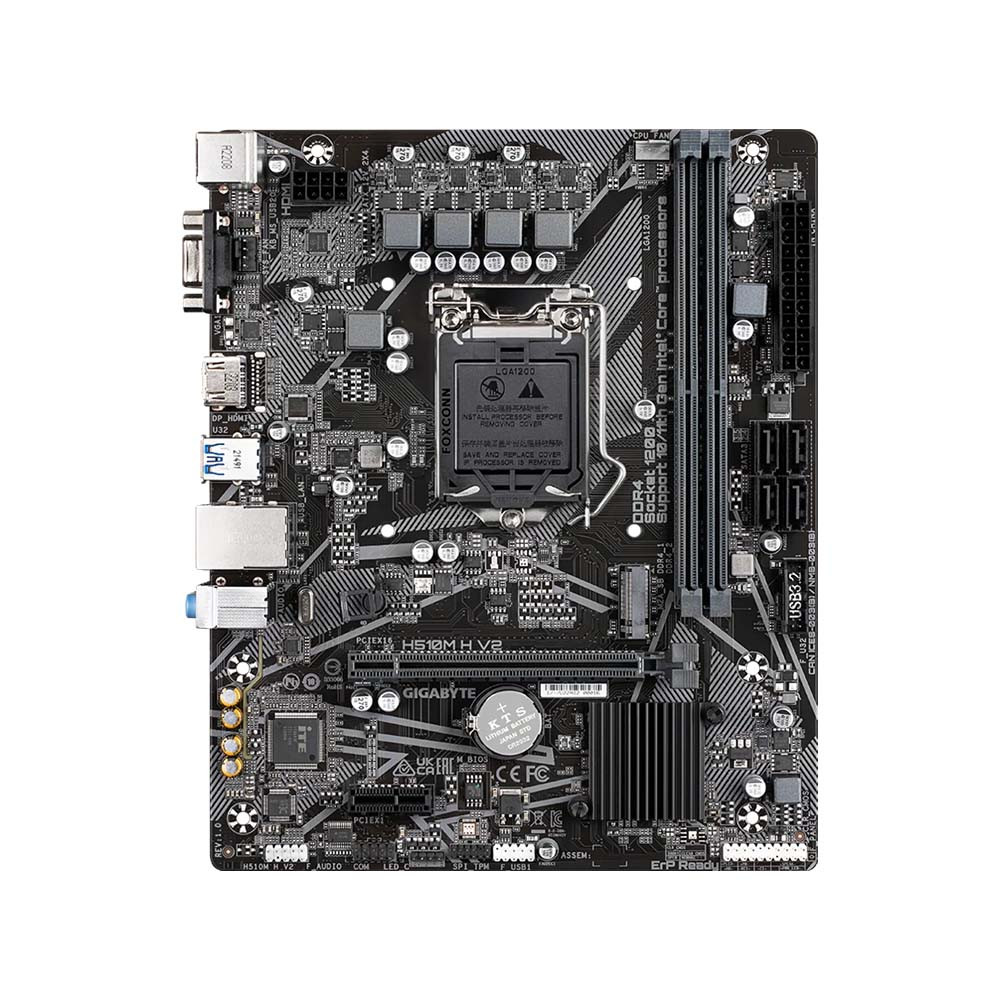

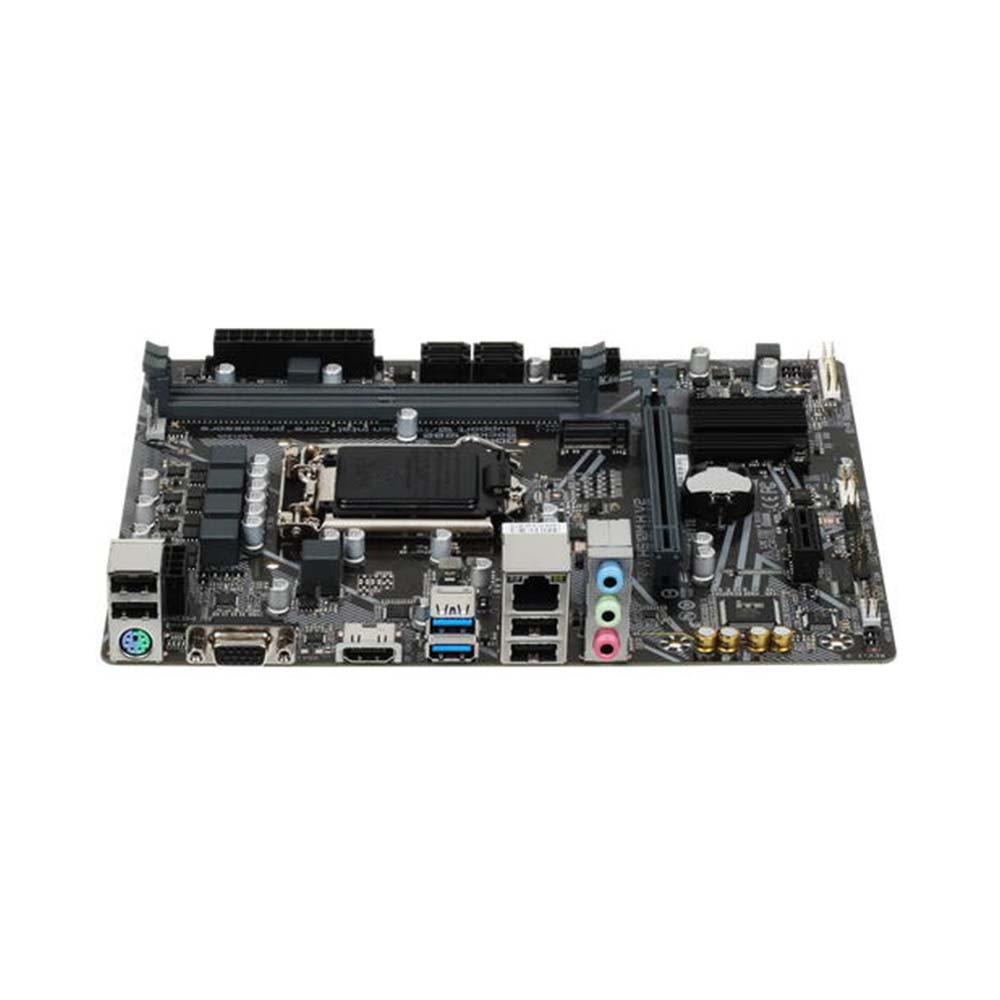

Bo Mạch Chủ GIGABYTE H510M H V2

MSP: SP119800
Đánh giá:
Lượt xem: 15233
Build PC với sản phẩm này
  • Socket: LGA1200 Hỗ trợ Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

  • Cổng xuất hình: HDMI+VGA (CPU Intel đầu 10 sử dụng được cả 2 cổng, CPU Intel đầu 11 chỉ sử dụng được cổng HDMI)

  • Kích thước: Micro ATX

  • Khe cắm RAM: 2 khe (Tối đa 64 GB)

  • Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

  • Khe cắm ổ cứng: 4 x SATA 6Gb/s, 1 x M.2 connector

Xem thêm
Khuyến mãi khi mua sản phẩm

🧧 Tặng 01 lượt Bốc Thăm Lì Xì đến hết 31/01/2026 (Số lượng quà có hạn)

1.779.000đ
1.949.000đ
-9%
Bảo hành 36 Tháng
Hỗ trợ trả góp 0%, trả trước 0 đ
Hoàn tiền 200% nếu có hàng giả
Giao hàng nhanh trên toàn quốc
Hỗ trợ kĩ thuật online 24/7
Vệ sinh miễn phí PC, Laptop trọn đời

Mô tả sản phẩm

Bo Mạch Chủ Asus Prime H510M-E là dòng main giá rẻ dành cho CPU thế hệ thứ 11, dù thuộc phần khúc giá rẻ nhưng vẫn được trang bị khe SSD M2 cho tốc độ cao. Sản phẩm hiện đang được bán tại TNC Store


Xem thêm

Đánh giá của khách hàng

5
5
0%
4
0%
3
0%
2
0%
1
0%
Xem thêm

Đánh giá sản phẩm

Chia sẻ đánh giá *
Họ và tên *
Nhập số điện thoại *
Gửi đánh giá

Thông số kỹ thuật

Model H510M H V2

CPU hỗ trợ

Intel
Chipset Intel® H470 Express Chipset

RAM hỗ trợ

11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng



CPU:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ



Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

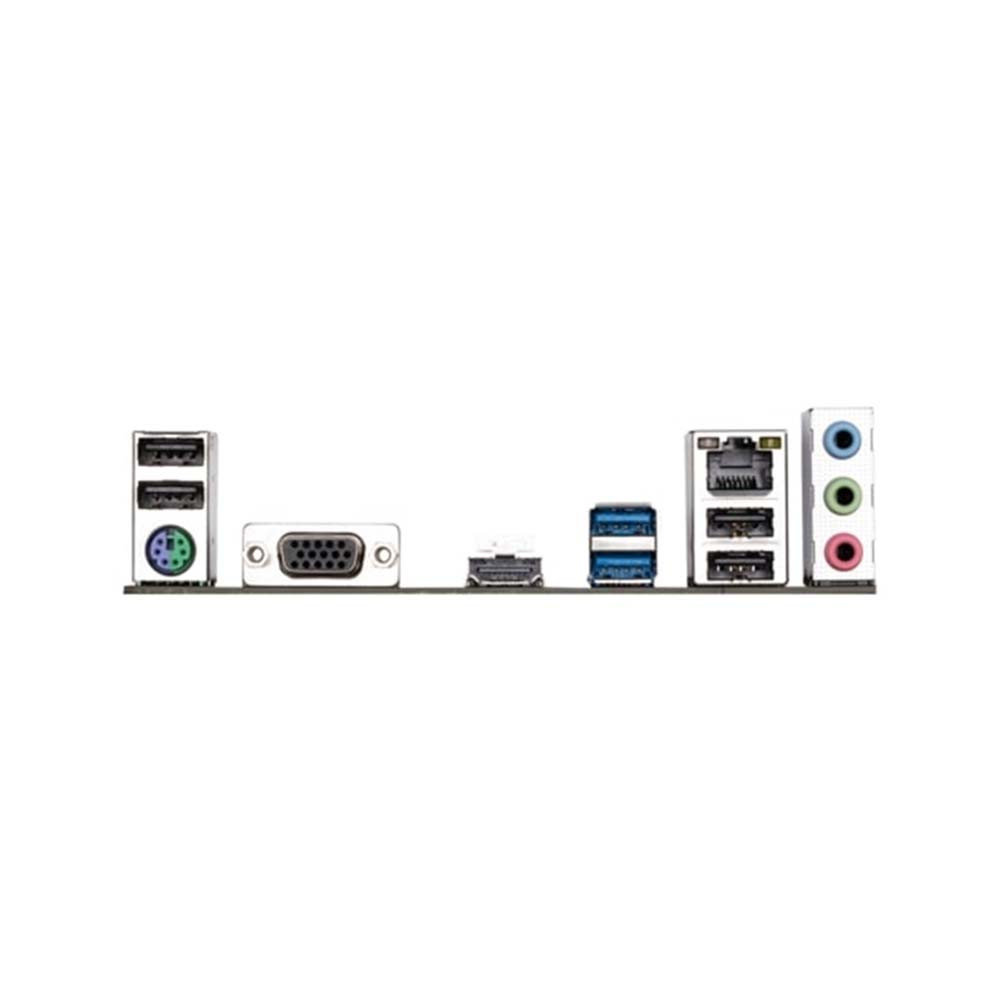

Back Panel

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

LAN / Wireless

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Kích cỡ

Micro ATX Form Factor; 22.6cm x 18.5cm
