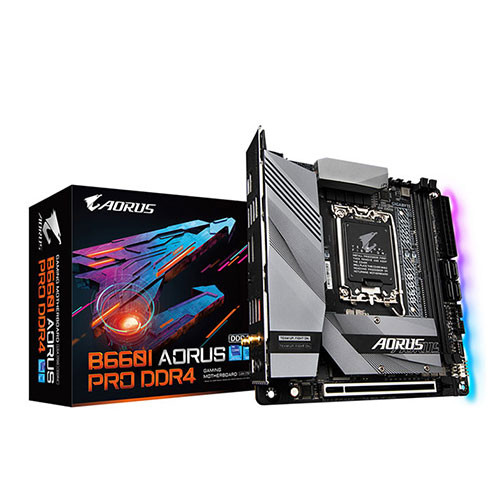

GIGABYTE

B660I AORUS PRO DDR4

I-ATX

LGA1700

Intel® B660 Express Chipset

2

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules

64 GB

Dual

1 x PCI Express x16 slot, running at x16

4 x SATA 6Gb/s connectors

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support)

Intel® 2.5GbE LAN chip

2.5 Gbps/1 Gbps/100 Mbps

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI 2.0 port

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

1 x optical S/PDIF Out connector

2 x audio jacks

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x reset jumper

1 x Clear CMOS jumper

1 x chassis intrusion header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x CPU fan header

1 x water cooling CPU fan header

1 x system fan header

1 x addressable LED strip header

1 x RGB LED strip header

17.0cm x 17.0cm

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector
