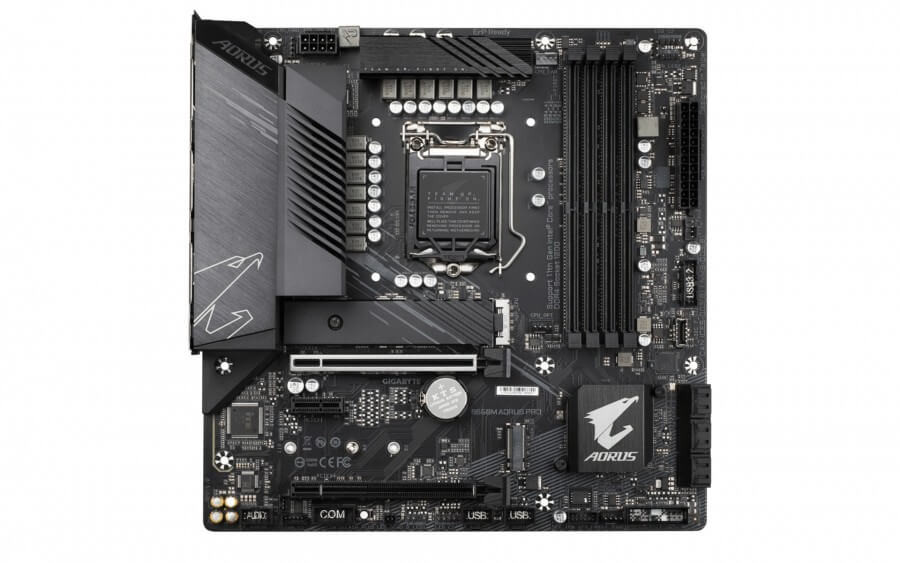

GIGABYTE

B560M AORUS PRO

Micro ATX

LGA1200

Intel® B560 Express

4

DDR4 5333Mhz - 2133Mhz

128GB

Dual Channel

2 x PCI Express x16 slot

1 x PCI Express x1 slot

6 x SATA 6Gb/s connectors

2 x M.2 connector

Ready

Realtek® Audio codec High Definition Audio

2/4/5.1/7.1-channel

Intel® 2.5GbE LAN chip

2.5 Gbit/1 Gbit/100 Mbit

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen2x2 support

1 x USB 3.2 Gen2 Type-A port (red)

2 x USB 3.2 Gen1 ports

6 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

6 x audio jacks

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x front panel header

1 x front panel audio header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

2 x addressable LED strip headers

2 x RGB LED strip headers

24.4cm x 24.4cm

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector
