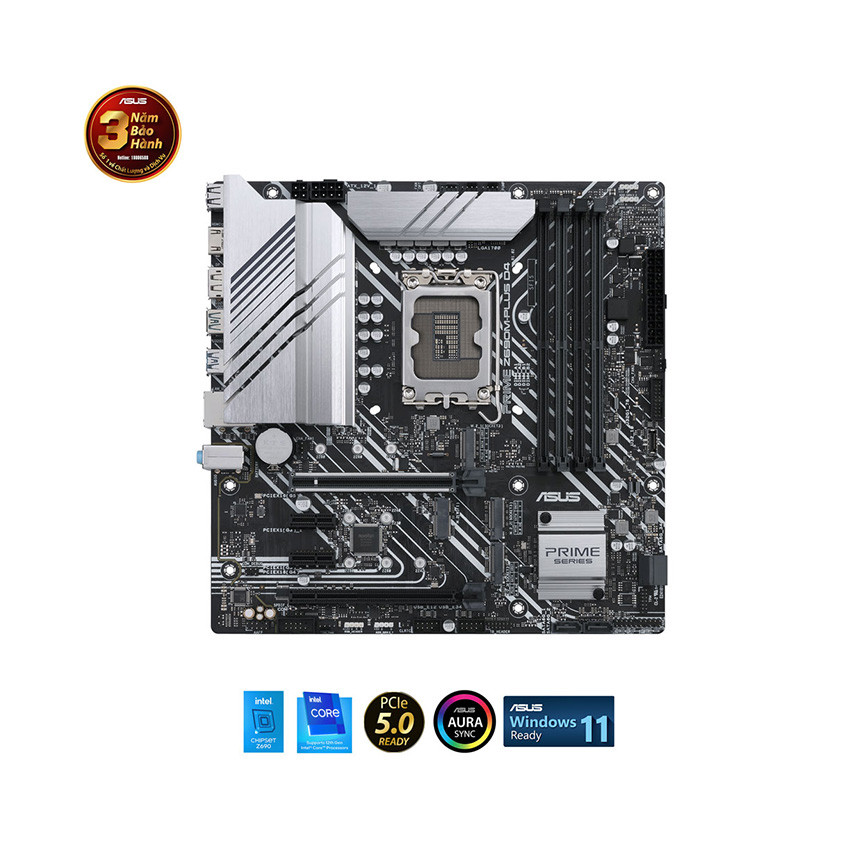

Bo Mạch Chủ ASUS PRIME Z690M-PLUS D4

Asus

ASUS PRIME Z690M-PLUS D4

M-ATX

LGA1700

Z690

5333MHz, 5133MHz, 5000MHz, 4800MHz, 4600MHz, 4400MHz, 4266MHz, 4133MHz, 4000MHz, 3866MHz

128GB

1x

4

3

USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports*

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

M-ATX 24.4cm x 24.4cm

1 x 24-pin Main Power connector
