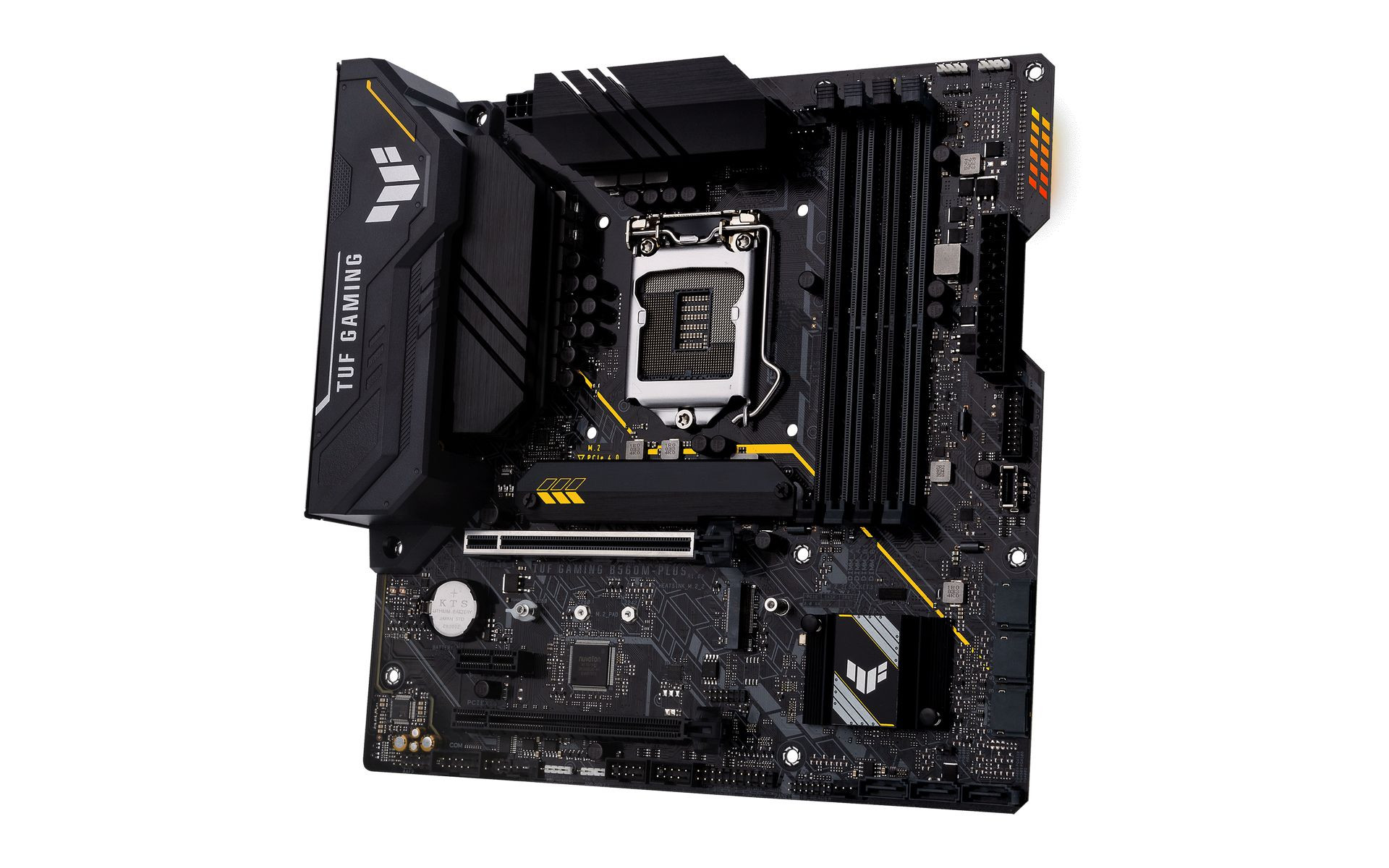

ASUS

TUF GAMING

m-ATX

Intel® Socket LGA1200 for 11th Gen Intel®

B560

4

3200/2933/2800/2666/2400/2133

128GB

Dual Channel

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slots

6 x SATA 6Gb/s ports

M.2_1 slot (Key M), type 2242/2260/2280

N/A

ALC887/897

1 x Intel® 2.5Gb Ethernet

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x TB Header (for add-on TB card)

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

2 x 4-pin Chassis Fan header(s)

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

N/A

24.4cm x 24.4cm

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector
