Asus

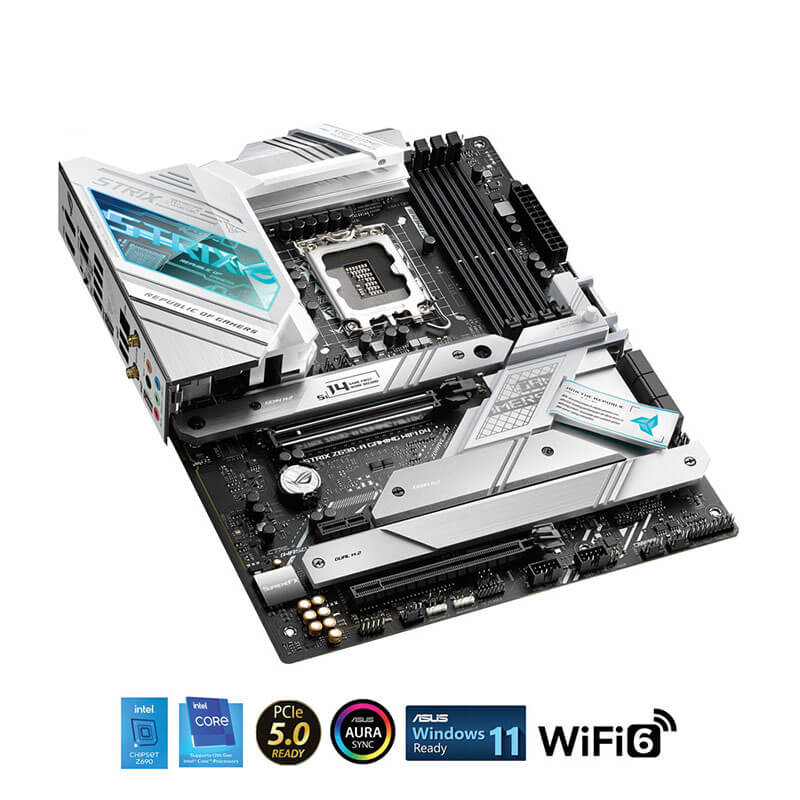

ROG STRIX Z690-A GAMING WIFI D4

ATX

LGA1700

Z690

4 x DIMM

5333(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

128GB

Dual Channel

1 x PCIe 5.0/4.0/3.0 x16 slot*

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

6 x SATA 6Gb/s ports

4 x M.2 slot

0/1/5/10

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

7.1

1 x Intel® 2.5Gb Ethernet

2.5Gb

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

1 x Clear CMOS button

1 x USB 3.2 Gen 2x2 connector (support USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers1 x Clear CMOS header

1 x CPU Over Voltage jumper

1 x 12-1 pin Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

3 x Addressable Gen 2 headers

1 x AURA RGB header

30.5cm x 24.4cm

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors
