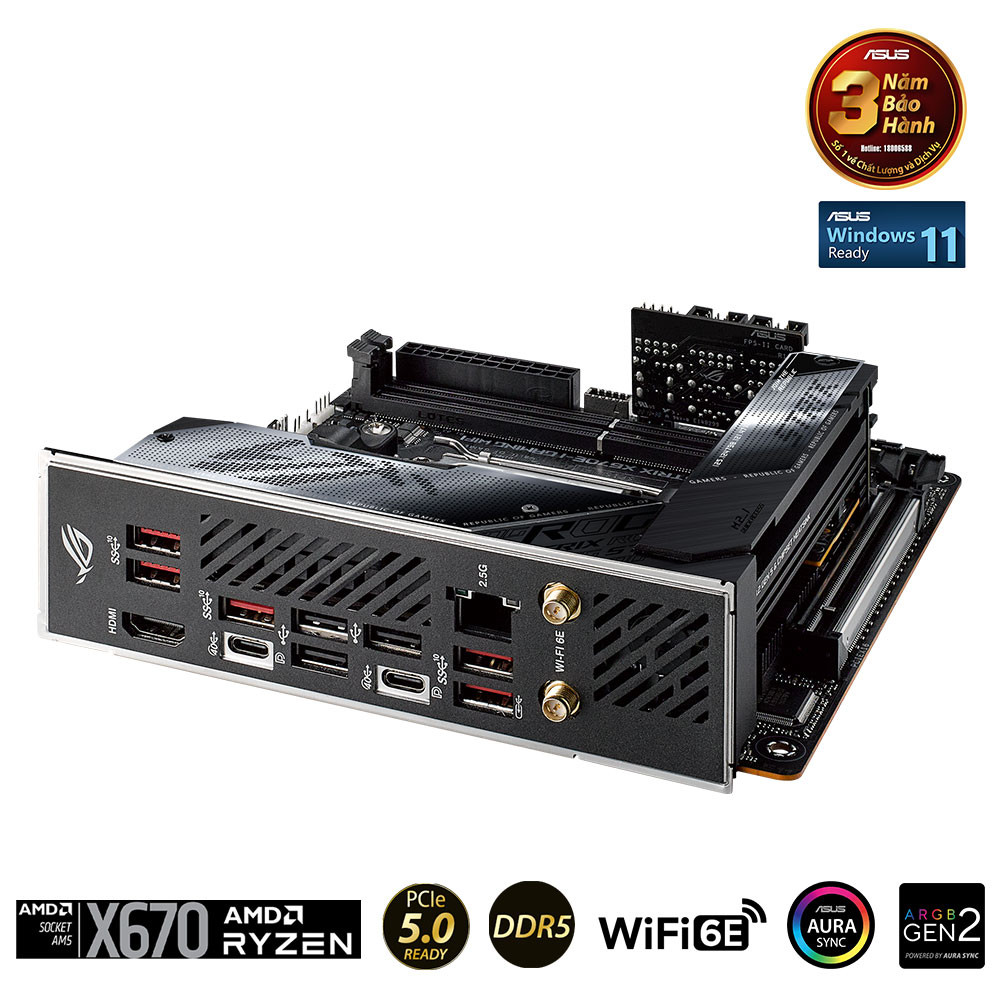

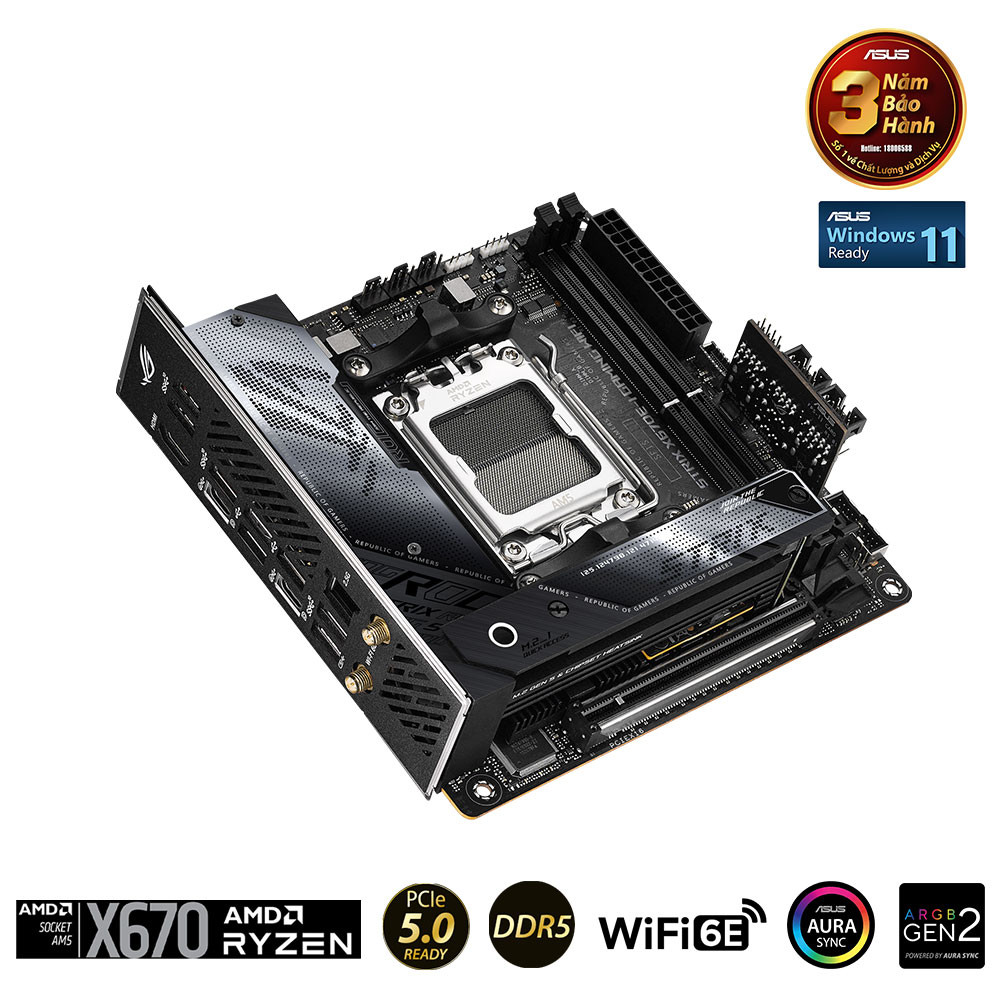

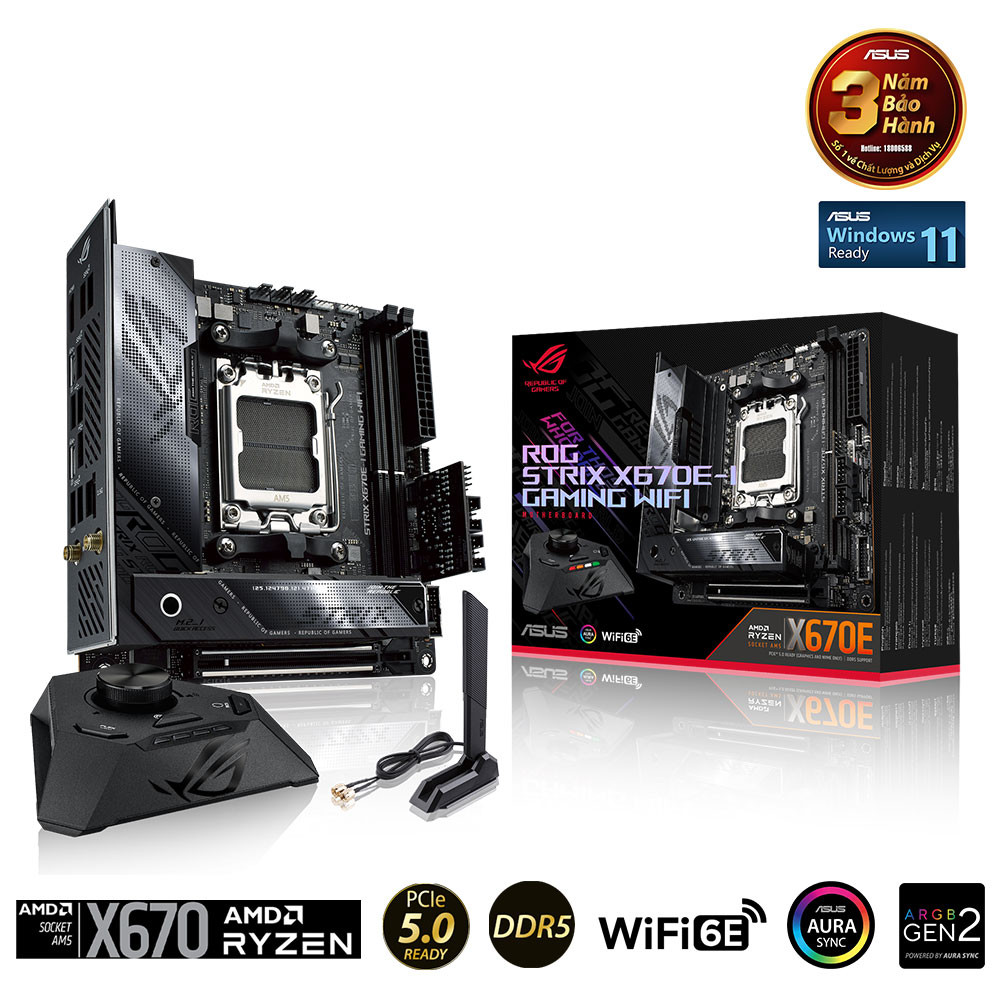

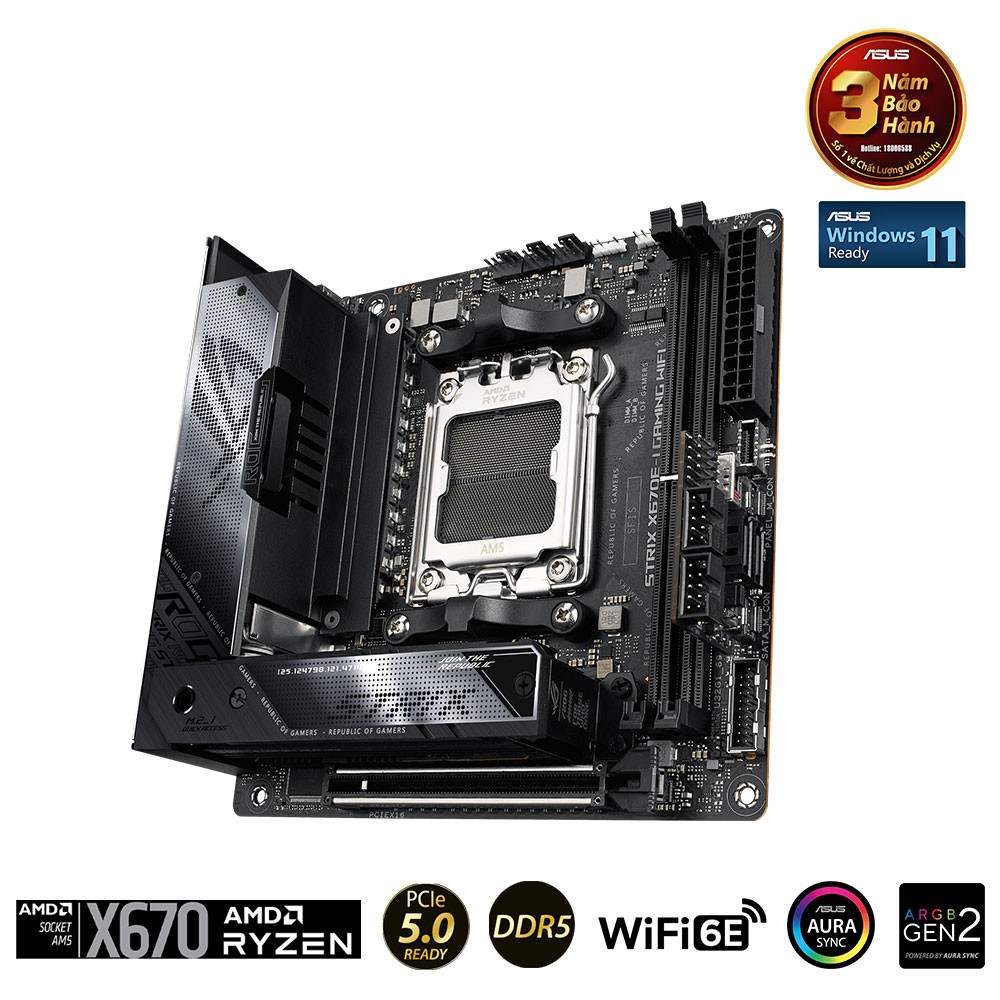

Bo Mạch Chủ ASUS ROG STRIX X670E-I GAMING WIFI

ASUS

ASUS ROG STRIX X670E-I GAMING WIFI

M-ITX

AM5

X670

2

DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory

64GB

1 x PCIe 5.0 x16 slot(s)

2 x SATA 6Gb/s ports

Total supports 2 x M.2 slots

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

AMD X670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

ROG High Definition Audio CODEC ALC4050

 - Supports: Jack-detection

 - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input

 - Supports up to 32-Bit/384 kHz playback

Audio Features

- ROG Hyper-Grounding Technology

- ESS® SABRE9260Q DAC

- Silver-plated audio jacks

- Optical S/PDIF out port & USB Type-C®  port with indepent power solution

- Dedicated audio PCB layers

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

2 x USB4® port(s) with Intel® JHL8540 USB4®

controller (2 x USB Type-C®)

5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1

port supports ROG STRIX HIVE)

3 x USB 2.0 port(s) (3 x Type-A)

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet port

1 x USB 3.2 Gen 2 connector (support(s) USB

Type-C® )

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

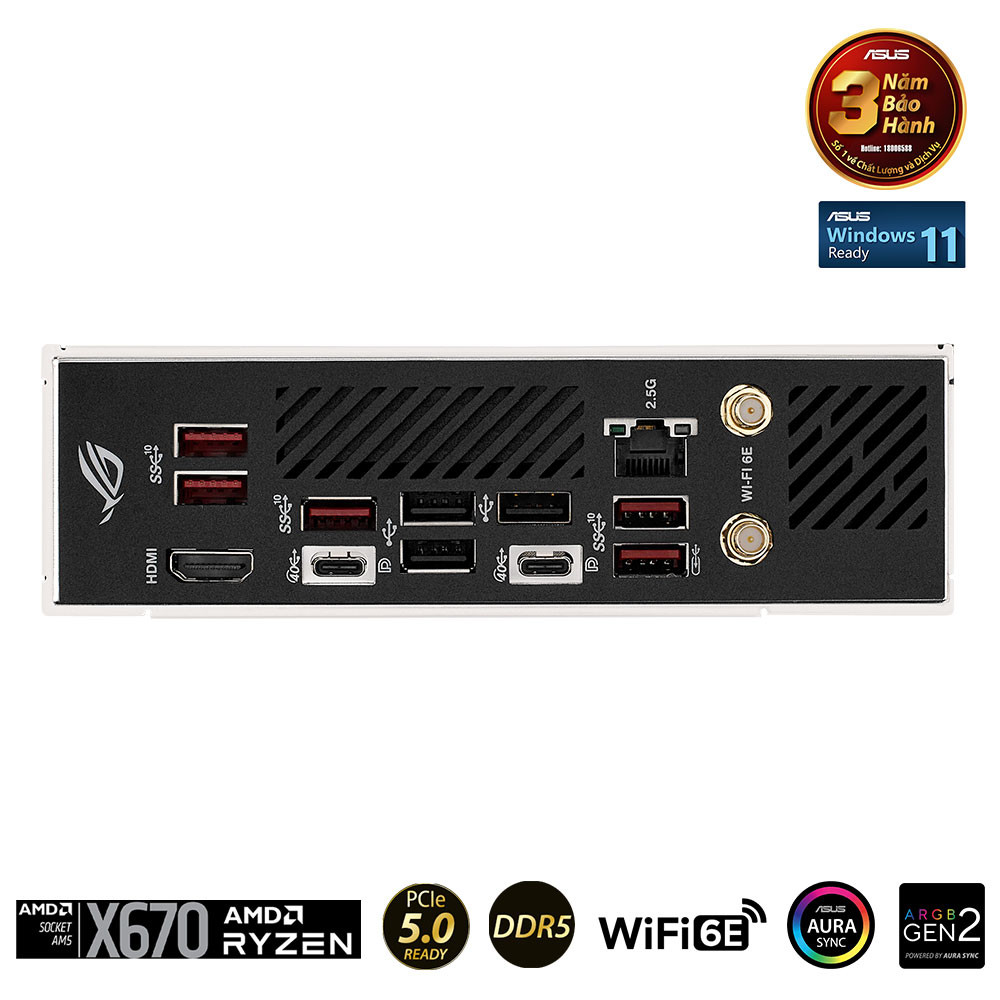

Rear USB (Total 10 ports)

2 x USB4® port(s) with Intel® JHL8540 USB4®

controller (2 x USB Type-C®)

5 x USB 3.2 Gen 2 port(s) (5 x Type-A)

3 x USB 2.0 port(s) (3 x Type-A)

Front USB (Total 3 ports)

1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s)

additional 2 USB 3.2 Gen 1 ports

ROG STRIX HIVE (Total 2 ports)

1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)

1 x USB 2.0 port(s) (1 x Type-A)

ROG FPS-II C (Total 3 ports)

2 x USB 2.0 header(s) additional 3 USB 2.0 ports

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

1 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x RTC Battery header

1 x Thermal Sensor header

1 x 2 pin Power_BTN header

2 x USB Type-C® connectors to Install ROG

ROG FPS-II card

2 x SATA 6Gb/s ports

1 x CPU Over Voltage jumper

1 x Clear CMOS header

1 x Front Panel header

1 x Alteration mode switch

2 x USB 2.0 header(s) support(s) additional

3 USB 2.0 ports

6.7 inch x 6.7 inch( 17cm x 17cm)

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector
