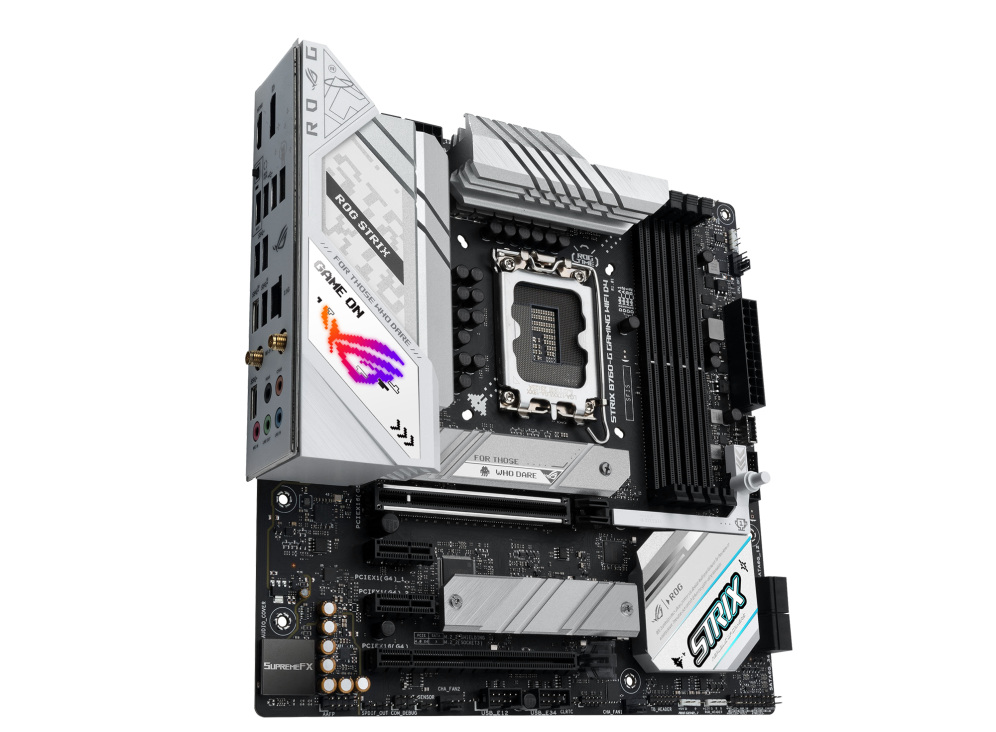

Bo Mạch Chủ ASUS ROG STRIX B760-G GAMING WIFI D4

ASUS

ROG STRIX B760-G GAMING WIFI D4

mATX

Intel® Socket LGA1700 for 13th Gen Intel®

Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®

Processors

Intel® B760

4

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133

MHz Non-ECC, Un-buffered Memory

128GB DDR4

Intel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot(s)

Intel® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 4.0 x1 slots

4 x SATA 6Gb/s ports

2 x M.2 slots

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

Intel® B760 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

ROG SupremeFX 7.1-Channel High

Definition Audio CODEC S1220A

- Impedance sense for front and rear

headphone outputs

- Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

- Audio cover

* Due to limitations in HAD bandwidth,

32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Intel® 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3

1 x USB 3.2 Gen 2x2 port(s) (1 x USB

Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x

USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x HDMI® port

1 x DisplayPort

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™  button

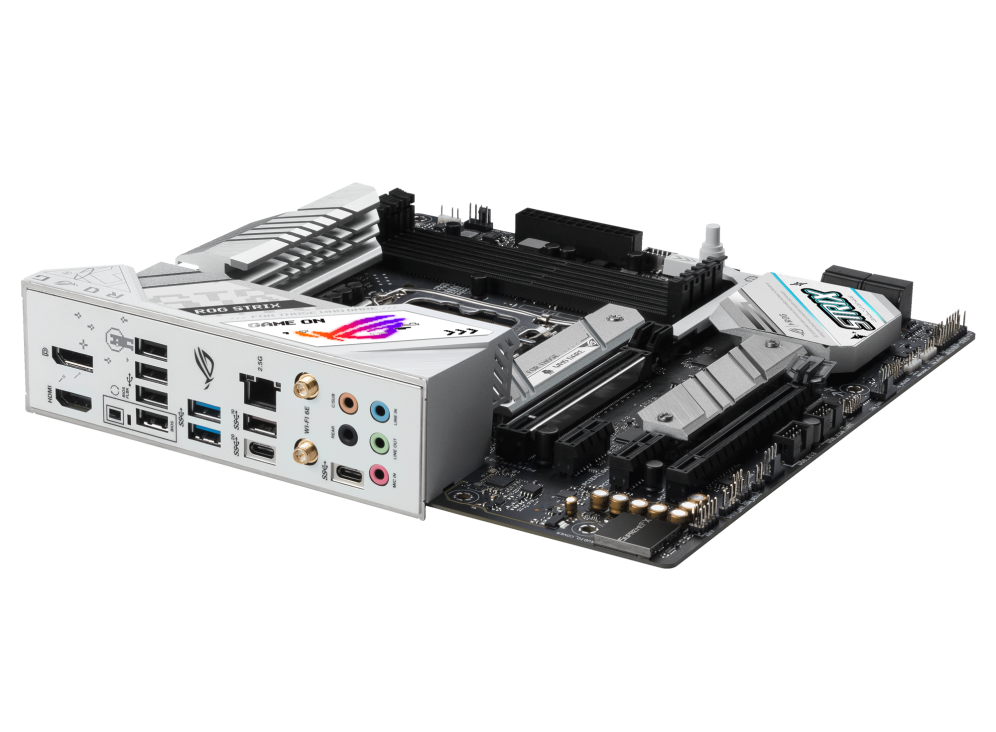

Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB

Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x

USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB

Type-C®)

1 x USB 3.2 Gen 1 header supports

additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header supports additional 4

USB 2.0 ports

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB

Type-C®)

1 x USB 3.2 Gen 1 header supports

additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4

USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-3 pin System Panel header with

Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
