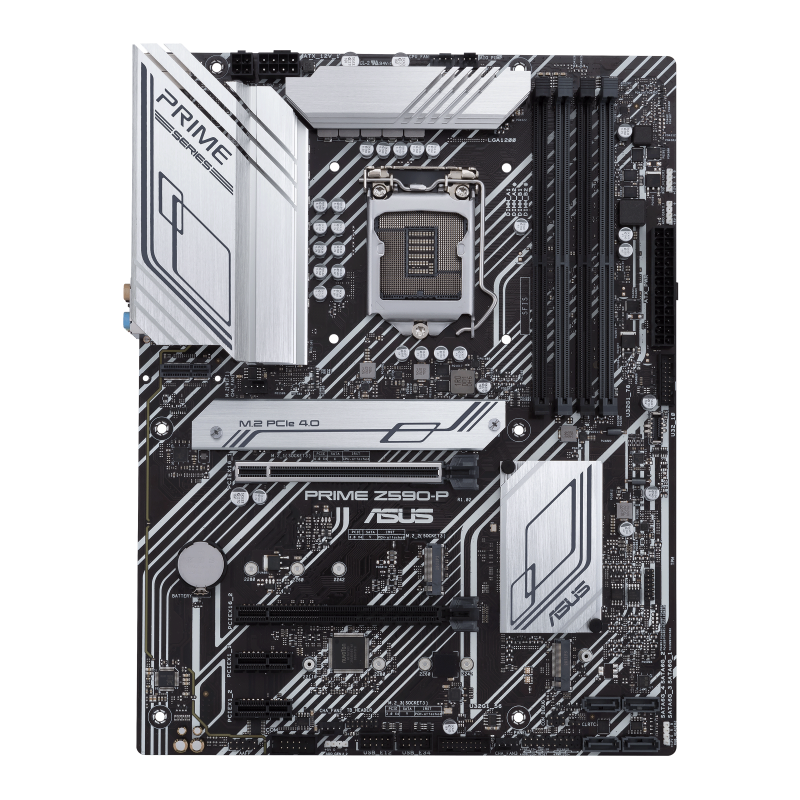

ASUS Prime Z590-P

ATX

LGA1200

Z590

4

5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC

128GB

2

4

3

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x V-M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x PS/2 Keyboard/Mouse combo port

Rear USB (Total 6 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports*

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5pin System Panel header

1 x Thunderbolt™ header

30.5 cm x 23.4 cm
