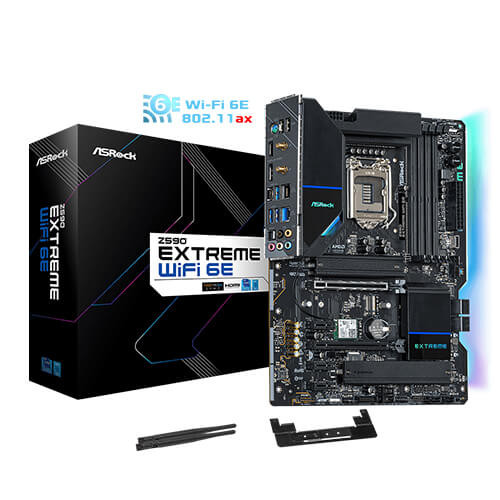

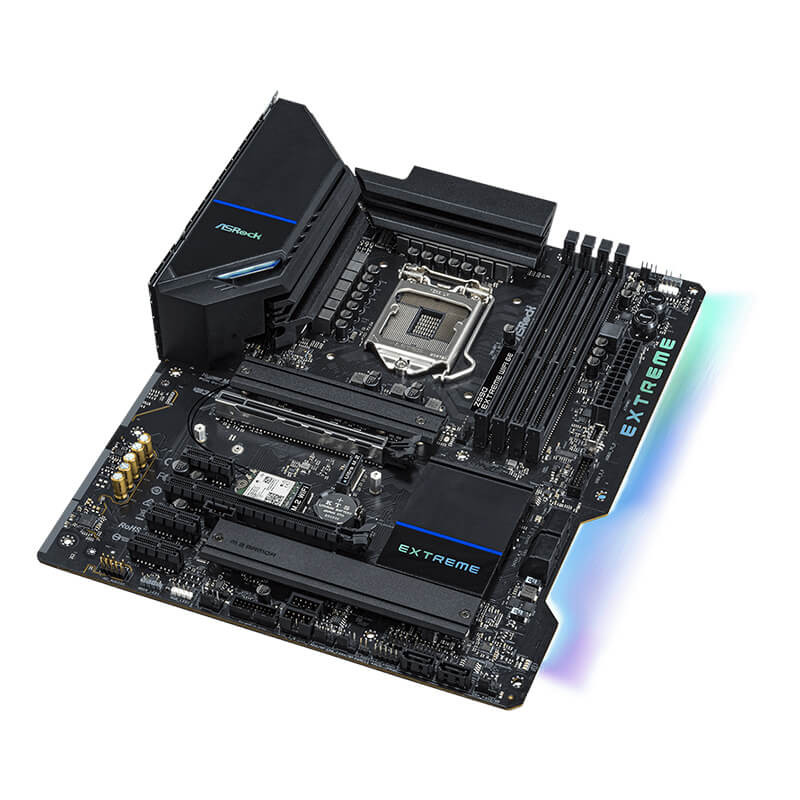

Asrock

Extreme WiFi 6E

ATX Form Factor

LGA1200

Intel® Z590

4

Max 4800+ OC Mode

128GB

Dual Channel

2 x PCI Express x16 Slots

3 x PCI Express 3.0 x1 Slots

6 x SATA3 6.0 Gb/s

2 x Ultra M.2

Ready

RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Realtek ALC1220 Audio Codec

7.1

Dragon RTL8125BG

10/100/1000/2500 Mb/s

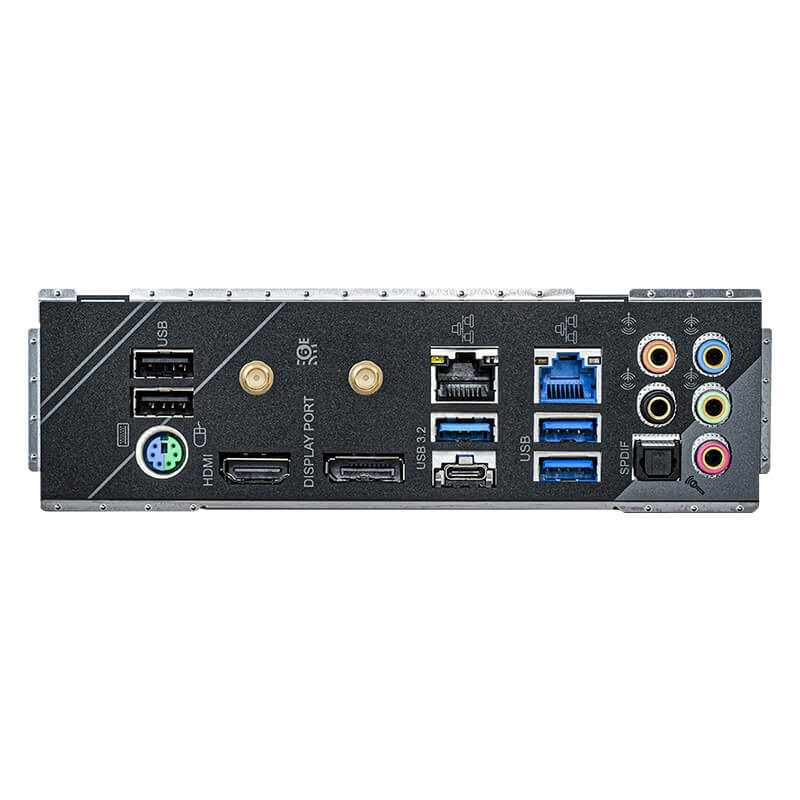

- 2 x Antenna Ports

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)*

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)*

- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

- 1 x Power Button with LED

- 1 x Reset Button with LED

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
