Asrock

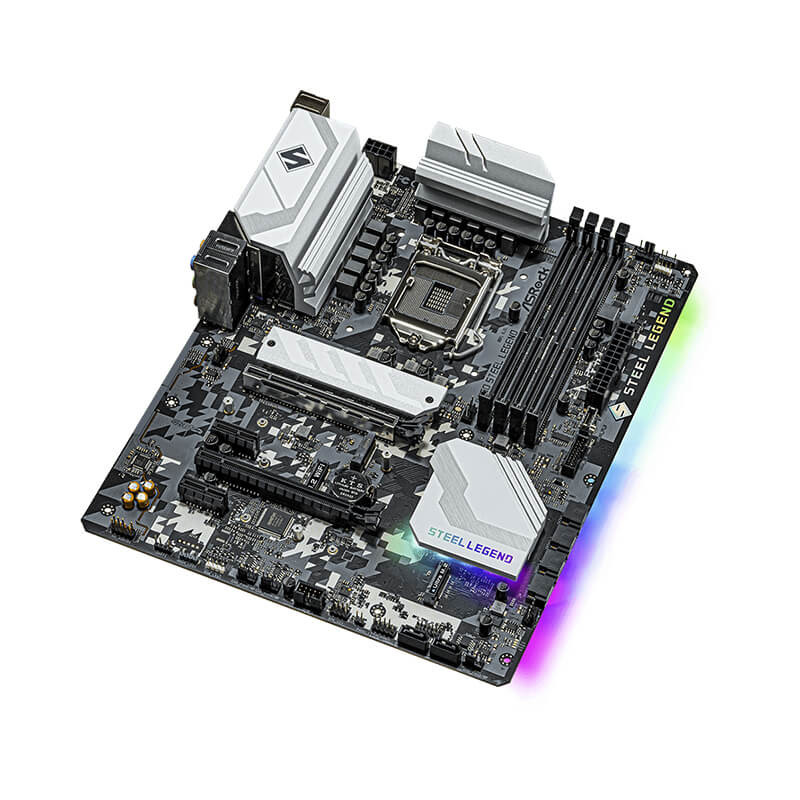

B560 Steel Legend

ATX

LGA1200

B560

4

- 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)

- 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)

128GB

Dual Channel

2 x PCI Express x16 Slots

2 x PCI Express 3.0 x1 Slots

 6 x SATA3 6.0 Gb/s Connectors

2 x Hyper M.2

Ready

Realtek ALC897 Audio Codec

7.1

Dragon RTL8125BG

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- 3 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 2 x RGB LED Headers

- 2 x Addressable LED Headers

 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
