ASUS

ATX

AMD

intel®

4

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

DDR4

4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *"

128GB

Dual Chanel

1 x PCIe 3.0 x16 slot (supports x4 mode)**

2 x PCIe 3.0 x1 slots

 4 x cổng SATA 6Gb/s

2 khe cắm M.2

N/A

N/A

N/A

2 x Intel® I225-V

 2.5Gb Ethernet

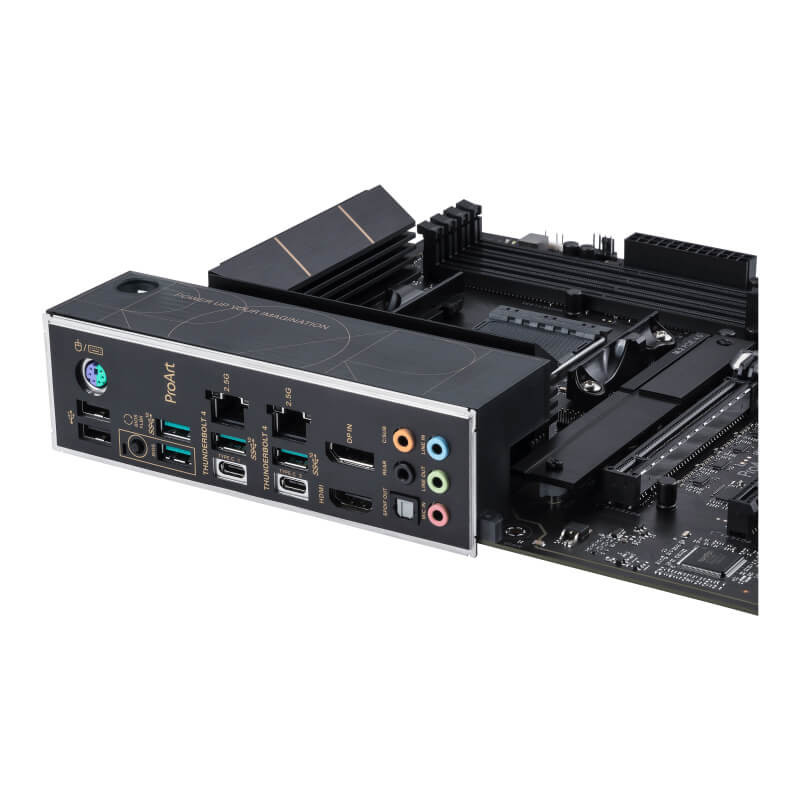

2 x Thunderbolt™ 4 USB Type-C® port(s)

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI™ port

2 x Intel® I225-V 2.5Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Rear USB:Total 8 ports

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

Miscellaneous

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

30.5cm x 24.4cm

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector
